Designing a highway is far more than drawing a road alignment on a map. A successful project must connect communities, accommodate traffic safely, manage drainage, protect the environment, support construction, and deliver acceptable performance throughout its design life. Every decision—from selecting the corridor to setting pavement thickness—can affect cost, safety, land acquisition, and long-term maintenance.

A well-defined Highway Design Workflow provides engineers with a systematic path from initial project planning through final design and construction documentation. It helps multidisciplinary teams coordinate surveys, traffic studies, geometric design, pavement engineering, drainage, structures, safety, utilities, and environmental requirements.

For civil engineering students, highway engineers, consultants, contractors, and government agencies, understanding this workflow is essential. It explains not only what needs to be designed, but also when each engineering decision should be made and how one stage influences another.

This guide explains the complete highway design process, including feasibility studies, route selection, surveys, traffic analysis, geometric design, pavement design, drainage, safety, quality control, construction documentation, and final review.

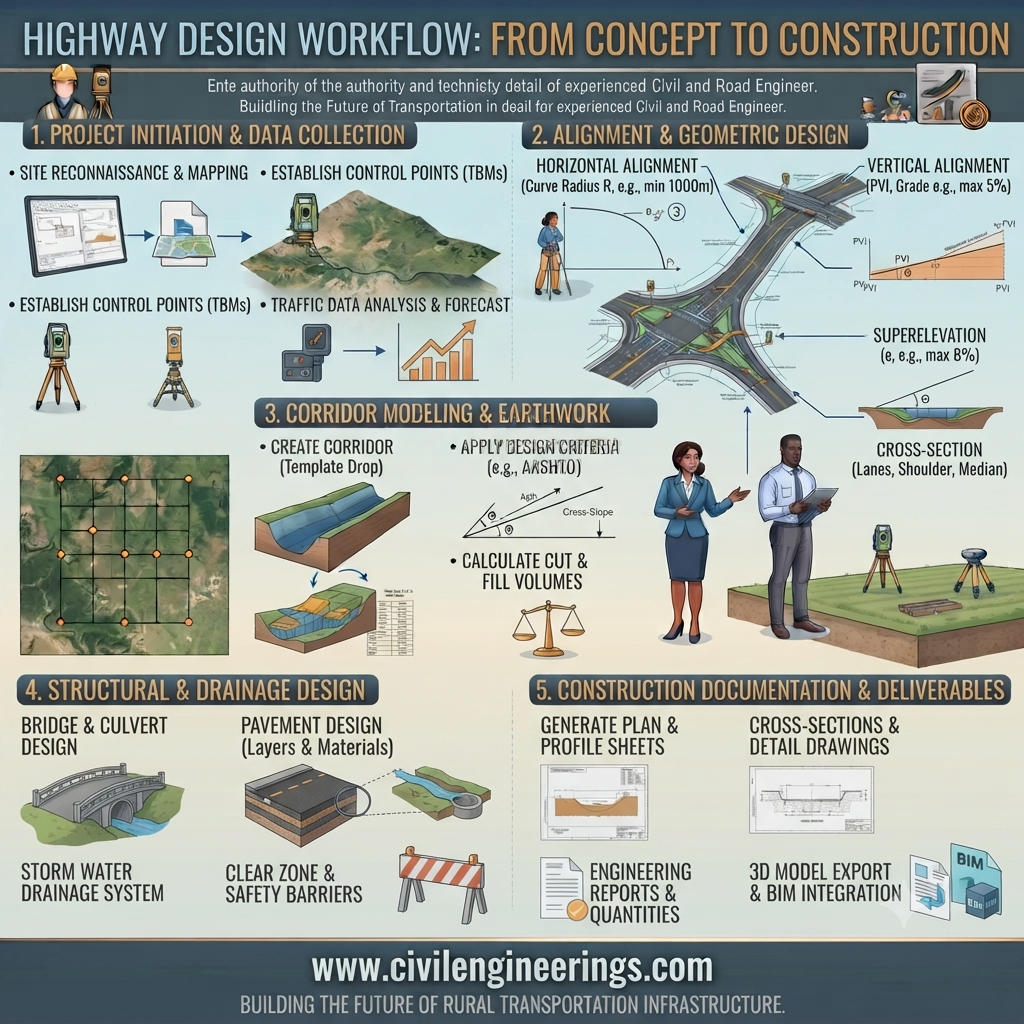

What Is a Highway Design Workflow?

A Highway Design Workflow is the organized sequence of engineering activities used to develop a highway project from an initial concept into a constructible and maintainable road facility.

The workflow normally integrates:

• Project feasibility and planning
• Traffic studies and forecasting
• Topographic and land surveys
• Geotechnical investigations
• Route and corridor selection
• Horizontal and vertical alignment
• Cross-section development
• Intersection and interchange design
• Pavement design
• Drainage and hydraulic design
• Road safety engineering
• Utility coordination
• Environmental assessment
• Cost estimation
• Construction drawings and specifications
• Quality assurance and design review

These activities do not always occur in a perfectly linear sequence. Highway design is an iterative process. For example, geotechnical findings may require changes to the alignment, while drainage requirements may influence the vertical profile.

Why a Systematic Workflow Matters

Poor coordination between design disciplines can produce expensive changes during construction.

A structured workflow helps engineers:

• Identify constraints early
• Reduce design conflicts
• Improve constructability
• Control project costs
• Coordinate multidisciplinary teams
• Improve road safety
• Minimize redesign
• Support accurate quantity estimation
• Produce consistent construction documents

The ultimate objective is not simply to create a road that can be constructed. It is to develop a facility that performs safely, economically, and reliably throughout its intended service life.

Stage 1: Project Planning and Feasibility Study

The highway design process begins before detailed engineering starts.

At this stage, the project team defines the transportation problem and evaluates whether a new highway, widening project, bypass, rehabilitation scheme, or interchange improvement can address it.

Define Project Objectives

Typical objectives may include:

• Reducing travel time
• Increasing traffic capacity
• Improving road safety
• Connecting economic centers
• Supporting regional development
• Removing through traffic from urban areas
• Improving freight movement
• Providing all-weather connectivity

The project scope should be clearly established before detailed design resources are committed.

Preliminary Feasibility Assessment

Engineers and planners examine:

• Existing road conditions
• Current traffic demand
• Future traffic growth
• Population distribution
• Land use
• Terrain
• Hydrology
• Environmental constraints
• Existing infrastructure
• Construction costs
• Right-of-way requirements

Several corridor alternatives may then be developed.

Economic and Technical Evaluation

Alternative routes can be compared using measurable engineering and economic parameters such as:

• Construction cost
• Land acquisition requirements
• Vehicle operating costs
• Travel-time savings
• Maintenance requirements
• Safety implications
• Environmental impacts
• Earthwork quantities

A feasibility study establishes whether the project is technically and economically reasonable before progressing to detailed design.

Stage 2: Data Collection and Site Investigation

Reliable design depends on reliable site information.

This stage provides the physical, geological, traffic, and environmental data required for subsequent engineering calculations.

Topographic Survey

A topographic survey establishes the existing ground surface and important physical features.

Survey data may include:

• Existing roads
• Buildings
• Rivers and streams
• Property boundaries
• Utility poles
• Drainage channels
• Trees
• Bridges and culverts
• Ground elevations
• Contours

Modern projects may combine total stations, GNSS/GPS, drones, LiDAR, aerial imagery, and digital terrain models.

Geotechnical Investigation

Geotechnical engineers investigate the subgrade and underlying soil conditions.

Typical investigations include:

• Boreholes
• Trial pits
• Soil classification
• Grain-size analysis
• Atterberg limits
• CBR testing
• Compaction testing
• Groundwater investigation
• Laboratory strength testing

For pavement design, the California Bearing Ratio (CBR) or other appropriate subgrade characterization methods can be particularly important.

Existing Utility Investigation

Water lines, gas pipelines, electrical systems, communication cables, and drainage networks should be identified before finalizing the alignment.

Unexpected utilities discovered during construction can cause delays, redesign, and claims.

Stage 3: Traffic Studies and Design Traffic

Traffic information establishes the demand that the proposed highway must accommodate.

Traffic Data Collection

Engineers may conduct:

• Classified traffic counts
• Automatic traffic counts
• Origin-destination surveys
• Speed studies
• Turning movement counts
• Axle-load surveys
• Parking studies
• Pedestrian counts
• Public transport surveys

The selected survey methods depend on project objectives.

Traffic Forecasting

Highway design normally considers future traffic rather than only present-day traffic.

A simplified compound growth relationship can be written as:$$A_n=A_0(1+r)^n$$

Where:

• $A_n$ = traffic after $n$ years
• $A_0$ = current traffic
• $r$ = annual growth rate
• $n$ = number of years

For example, if current traffic is 20,000 vehicles/day, annual growth is 4%, and the design period is 20 years:$$A_{20}=20,000(1.04)^{20}$$

The resulting forecast becomes an important input for capacity, pavement, intersection, and interchange design.

Design Traffic and Heavy Vehicles

Pavement design requires particular attention to commercial vehicles and axle loading.

For flexible pavement, repeated heavy axle loads can be converted into an appropriate design traffic measure, such as equivalent standard axle repetitions, depending on the adopted design method.

Traffic assumptions should always be documented because they can significantly influence pavement thickness and highway capacity.

Stage 4: Route Selection and Corridor Development

Once site and traffic information becomes available, engineers refine potential highway corridors.

Route Selection Factors

Important considerations include:

• Terrain
• Soil and geology
• Existing settlements
• Agricultural land
• Rivers and floodplains
• Protected areas
• Utility corridors
• Existing transportation networks
• Construction access
• Right-of-way
• Environmental constraints
• Future development

A short route is not automatically the best engineering solution. A slightly longer route may reduce steep grades, major structures, property acquisition, or environmental impacts.

Preliminary Alignment

The preliminary centerline provides a basis for comparing alternatives.

At this stage, engineers examine:

• Horizontal curves
• Vertical grades
• Sight distance
• Earthwork
• Drainage
• Crossings
• Intersections
• Right-of-way
• Construction feasibility

Modern highway projects increasingly use GIS and digital terrain models to evaluate multiple alternatives efficiently.

Stage 5: Highway Geometric Design

Geometric design converts the selected corridor into a safe three-dimensional road alignment.

This is one of the most important parts of the Highway Design Workflow.

Design Speed

Design speed influences many geometric elements, including:

• Horizontal curve radius
• Superelevation
• Sight distance
• Vertical curve length
• Stopping sight distance
• Lane configuration

The selected value should reflect road classification, terrain, traffic function, surrounding development, and applicable design standards.

Horizontal Alignment

Horizontal alignment consists primarily of:

• Tangents
• Circular curves
• Transition curves

The minimum horizontal curve radius is influenced by design speed, superelevation, and side friction.

A commonly used relationship is:$$R=\frac{V^2}{127(e+f)}$$

Where:

• $R$ = minimum curve radius in metres
• $V$ = speed in km/h
• $e$ = superelevation rate
• $f$ = side-friction factor

The exact values and application depend on the adopted design standard.

Vertical Alignment

Vertical alignment consists of grades connected by vertical curves.

Engineers evaluate:

• Maximum and minimum gradients
• Crest curves
• Sag curves
• Drainage
• Sight distance
• Heavy-vehicle performance
• Earthwork balance

A parabolic vertical curve is commonly used.

For a simple equal-tangent vertical curve:$$L=\frac{A}{K}$$

Where:

• $L$ = curve length
• $A$ = algebraic difference in grades
• $K$ = design parameter based on sight-distance requirements

Cross-Section Design

A highway cross-section may include:

• Traffic lanes
• Shoulders
• Median
• Verge
• Side slopes
• Drainage facilities
• Kerbs
• Footways
• Cycle facilities
• Safety barriers

Cross-sectional dimensions depend on road classification, traffic demand, design speed, terrain, and governing standards.

Stage 6: Intersection and Interchange Design

Highway performance can be significantly affected by intersections.

At-Grade Intersections

Engineers examine:

• Approach alignment
• Sight distance
• Turning radii
• Channelization
• Lane allocation
• Traffic control
• Pedestrian movement
• Queue lengths
• Storage requirements

Turning movement counts and traffic forecasts help determine the appropriate intersection configuration.

Grade-Separated Interchanges

For high-volume corridors, an interchange may be required.

Typical components include:

• Ramps
• Merge areas
• Diverge areas
• Acceleration lanes
• Deceleration lanes
• Overpasses
• Underpasses
• Ramp terminals

Interchange design requires close coordination between geometric, structural, traffic, drainage, and safety disciplines.

Stage 7: Pavement Design

The pavement must transfer traffic loads to the underlying soil without unacceptable deformation or distress.

Depending on the project, engineers may select:

• Flexible pavement
• Rigid pavement
• Composite pavement

Flexible Pavement

A typical flexible pavement consists of:

1. Surface or wearing course
2. Binder course, where applicable
3. Base course
4. Subbase
5. Compacted subgrade

Design inputs can include:

• Traffic loading
• Climate
• Material properties
• Subgrade strength
• Drainage
• Reliability
• Design life

Rigid Pavement

Concrete pavement relies on a concrete slab to distribute wheel loads over a broader area.

Important considerations include:

• Concrete strength
• Slab thickness
• Joint spacing
• Load transfer
• Temperature effects
• Subbase support
• Drainage
• Reinforcement where required

Pavement design should be compatible with expected construction quality and locally available materials.

Stage 8: Drainage and Hydraulic Design

Water is one of the major causes of premature highway deterioration.

The drainage design should therefore develop alongside the highway alignment rather than being treated as an afterthought.

Surface Drainage

Typical facilities include:

• Side drains
• Kerb inlets
• Gutters
• Median drainage
• Catch basins
• Cross-drainage structures

The Rational Method is often used for estimating peak runoff for suitable catchments:$$Q=CiA$$

Where:

• $Q$ = peak runoff
• $C$ = runoff coefficient
• $i$ = rainfall intensity
• $A$ = drainage area

Units must be selected consistently according to the adopted formulation.

Culverts and Cross-Drainage

Culverts must safely convey water beneath the road while maintaining acceptable upstream and downstream conditions.

Engineers investigate:

• Catchment area
• Design storm
• Hydraulic capacity
• Inlet and outlet conditions
• Scour
• Debris
• Flood levels
• Headwater depth

Poor hydraulic design can result in pavement failure, erosion, flooding, or even roadway washout.

Stage 9: Road Safety Engineering

Safety should be incorporated throughout the design rather than added after geometric design is complete.

Safety Considerations

Engineers should examine:

• Stopping sight distance
• Intersection visibility
• Clear zones
• Roadside hazards
• Median treatment
• Guardrails and crash barriers
• Delineation
• Signs
• Pavement markings
• Lighting
• Pedestrian facilities

A road safety audit can identify potential problems at different design stages.

Roadside Design

Fixed objects close to the roadway can increase crash severity.

Where appropriate, the design should provide a recoverable roadside area or use suitable protective systems where hazards cannot be removed.

Crash barriers should not be installed automatically wherever an object exists. Their use requires consideration of the hazard, deflection, working width, terminal treatment, and applicable barrier standards.

Stage 10: Environmental, Land, and Utility Coordination

A technically sound highway can still face major project problems if environmental and property constraints are ignored.

Environmental Assessment

Depending on jurisdiction and project scale, studies may address:

• Water resources
• Wildlife
• Vegetation
• Noise
• Air quality
• Cultural heritage
• Floodplains
• Agricultural land
• Community impacts

Mitigation measures should be incorporated into the design where required.

Right-of-Way

The final corridor must account for land acquisition and property boundaries.

Engineers should coordinate:

• Roadway limits
• Drainage easements
• Utility corridors
• Temporary construction areas
• Access requirements

Utility Coordination

Utility relocation plans should be developed before construction wherever practical.

A coordinated utility plan reduces conflicts between roadway excavation and existing services.

Stage 11: Detailed Engineering and Construction Documentation

After the major design decisions are established, the project moves toward detailed engineering.

Construction Drawings

Typical drawings include:

• General layout
• Alignment plans
• Profile drawings
• Typical cross-sections
• Detailed cross-sections
• Pavement details
• Drainage drawings
• Culvert details
• Intersection layouts
• Traffic signs and markings
• Roadside safety details
• Utility relocation drawings

Quantity Estimation

Quantities may include:

• Earthwork
• Subgrade preparation
• Aggregate
• Asphalt
• Concrete
• Drainage structures
• Pipes
• Kerbs
• Barriers
• Signs
• Pavement markings

Accurate quantities depend heavily on the quality of the digital terrain model, cross-sections, design surfaces, and drawing coordination.

Technical Specifications

Specifications define requirements for:

• Materials
• Construction methods
• Testing
• Tolerances
• Workmanship
• Measurement
• Payment
• Quality control

The drawings, specifications, bill of quantities, and contract conditions should be internally consistent.

Stage 12: Design Review, QA/QC, and Constructability

Before issuing the final design, an independent review can identify errors that may otherwise reach construction.

Design Checks

A highway design review may verify:

• Alignment geometry
• Superelevation
• Sight distance
• Drainage
• Pavement thickness
• Earthwork
• Quantities
• Structural interfaces
• Safety features
• Utility conflicts

Digital design tools can identify some geometric conflicts, but professional engineering review remains essential.

Constructability Review

The design team should ask practical questions:

• Can contractors physically build the proposed details?
• Is construction staging possible?
• Can traffic remain operational?
• Are temporary drainage measures required?
• Are materials locally available?
• Are construction tolerances realistic?
• Are utility relocations achievable before construction?

A design that looks correct on paper may still create serious field problems if constructability is not considered.

IRC, AASHTO, and ICE in Highway Design

Highway design standards vary by country, road authority, project classification, and contractual requirements.

In India and several South Asian engineering contexts, IRC publications provide important guidance on highway planning, geometric design, pavement engineering, traffic engineering, road safety, and related subjects.

AASHTO publications are widely referenced internationally, particularly for geometric design, pavement engineering, roadside safety, and transportation infrastructure.

The Institution of Civil Engineers (ICE) provides professional guidance, technical knowledge, and engineering resources relevant to infrastructure development and civil engineering practice.

These references should not be mixed casually. Engineers should identify the governing standard at the beginning of the project and apply its requirements consistently. Where local authority standards differ from international guidance, the contractual and statutory requirements of the project take precedence.

Practical Highway Design Workflow Checklist

A practical sequence can be summarized as:

Project Need → Feasibility → Traffic Study → Survey → Geotechnical Investigation → Route Selection → Preliminary Alignment → Geometric Design → Intersections/Interchanges → Pavement Design → Drainage → Safety → Utilities/Environment → Detailed Design → Quantities → Specifications → QA/QC → Constructability Review → Final Drawings

The sequence can move backward when new information changes an earlier decision.

For example, discovering weak compressible soil may require a change in embankment geometry or even corridor selection. Likewise, an environmental constraint may require the alignment to be shifted before pavement and drainage details are finalized.

Common Mistakes in Highway Design

Several problems repeatedly affect highway projects.

Designing Before Collecting Adequate Data

Incomplete topographic or geotechnical information can make subsequent calculations unreliable.

Using Traffic Data Without Proper Forecasting

Designing solely for present traffic may result in insufficient future capacity.

Treating Drainage as Secondary

Even excellent pavement materials can deteriorate rapidly when water enters the pavement system or remains around the subgrade.

Ignoring Construction Constraints

Designers should consider equipment, material availability, traffic management, temporary works, and construction sequence.

Poor Coordination Between Disciplines

Roadway, structural, drainage, utility, electrical, environmental, and traffic designs must be coordinated.

Overreliance on Software

Civil engineering software can automate calculations and drafting, but it cannot replace engineering judgment. Incorrect input produces an incorrect output regardless of how sophisticated the software is.

Practical Recommendations for Students, Engineers, and Contractors

For Civil Engineering Students

Focus on understanding the relationship between design parameters rather than memorizing isolated formulas.

Practice:

• Reading highway plans
• Creating longitudinal profiles
• Calculating horizontal curves
• Understanding superelevation
• Performing traffic calculations
• Designing basic drainage
• Interpreting pavement layers

Learning CAD and Civil 3D-style workflows can also help bridge the gap between academic concepts and professional practice.

For Highway Engineers

Maintain a clear design basis document containing:

• Design standards
• Design speed
• Traffic assumptions
• Design period
• Material parameters
• Hydrological criteria
• Geotechnical assumptions
• Safety criteria

Record design changes and the reasons behind them. This creates traceability throughout the project.

For Contractors

Study the complete design package rather than focusing only on individual drawings.

Pay particular attention to:

• Datum and benchmarks
• Alignment coordinates
• Pavement layer requirements
• Material specifications
• Drainage levels
• Compaction requirements
• Construction tolerances
• Traffic management
• Approved method statements

Raise discrepancies through the formal project process before construction proceeds.

Frequently Asked Questions

What is a Highway Design Workflow?

A Highway Design Workflow is the organized sequence of planning, surveying, traffic analysis, geometric design, pavement design, drainage, safety, documentation, review, and construction preparation used to develop a highway project.

What is the first step in highway design?

The first step is normally project planning and feasibility assessment. Engineers define the transportation need, project objectives, constraints, and potential solutions before detailed engineering begins.

Why is traffic forecasting important in highway design?

Traffic forecasting helps determine future capacity requirements, pavement loading, intersection performance, lane requirements, and other design parameters.

What surveys are required for highway design?

Common surveys include topographic surveys, traffic surveys, geotechnical investigations, drainage or hydrological studies, utility surveys, and environmental investigations.

What is the role of geometric design in highway engineering?

Geometric design establishes the physical shape of the highway, including horizontal alignment, vertical alignment, cross-section, curves, grades, sight distance, and intersection geometry.

Why is drainage important in highway design?

Drainage removes surface and subsurface water from the roadway system. Proper drainage protects pavement, embankments, slopes, and structures from water-related deterioration and erosion.

Which standards are used for highway design?

The applicable standard depends on the project jurisdiction and contract requirements. IRC, AASHTO, national road authority manuals, and other recognized engineering standards may be applicable.

Can highway design be completed entirely using software?

No. Software can assist with modeling, calculations, drafting, quantity estimation, and design checks, but engineers must establish appropriate inputs, interpret results, verify assumptions, and exercise professional judgment.

How does pavement design fit into the highway design process?

Pavement design uses traffic loading, subgrade conditions, materials, climate, drainage, and the selected design methodology to determine an appropriate pavement structure.

What is the difference between highway design and highway construction?

Highway design establishes what should be built through engineering calculations, drawings, specifications, and technical requirements. Construction converts that approved design into a physical road while meeting specified quality and safety requirements.

Conclusion

A successful highway does not emerge from a single calculation or drawing. It results from a coordinated engineering process in which planning, traffic analysis, surveys, geotechnical investigation, geometric design, pavement engineering, drainage, safety, environmental assessment, and construction planning work together.

The Highway Design Workflow provides the framework for managing these interconnected activities. Each stage contributes information to the next, while design reviews and field realities may require engineers to revisit earlier decisions. This iterative approach is essential for producing highways that are safe, durable, economical, constructible, and suitable for their intended function.

For students, understanding the workflow creates a strong foundation for professional highway engineering. For practicing engineers and consultants, disciplined coordination improves design reliability. Contractors benefit when drawings and specifications reflect real construction conditions.

Ultimately, good highway design combines engineering standards with sound judgment, accurate site information, realistic assumptions, multidisciplinary coordination, and careful quality control. When these principles are applied from project inception through final documentation, the resulting transportation infrastructure can provide dependable service for decades.
