Introduction

Modern civil engineering projects depend on accurate information about the ground before a road, bridge, drainage system, railway, building, or earthwork operation is designed. A few incorrect elevation points can alter a proposed road profile, affect drainage flow, change cut-and-fill quantities, or create problems during construction. This is where a Digital Terrain Model (DTM) becomes highly valuable.

A Digital Terrain Model (DTM) is a digital representation of the bare-earth terrain that describes ground elevations and important terrain features using elevation points, breaklines, contours, or related surface information. Depending on the organization and region, the term DTM may be used differently from DEM, so understanding the terminology is important. USGS documentation, for example, distinguishes a DTM in the U.S. context as a dataset containing 3D mass points and breaklines from which surfaces such as TINs or DEMs can be derived. (USGS)

For highway engineers, surveyors, contractors, GIS professionals, and infrastructure planners, a reliable DTM provides the foundation for terrain analysis, alignment design, grading, drainage assessment, earthwork calculations, and 3D visualization.

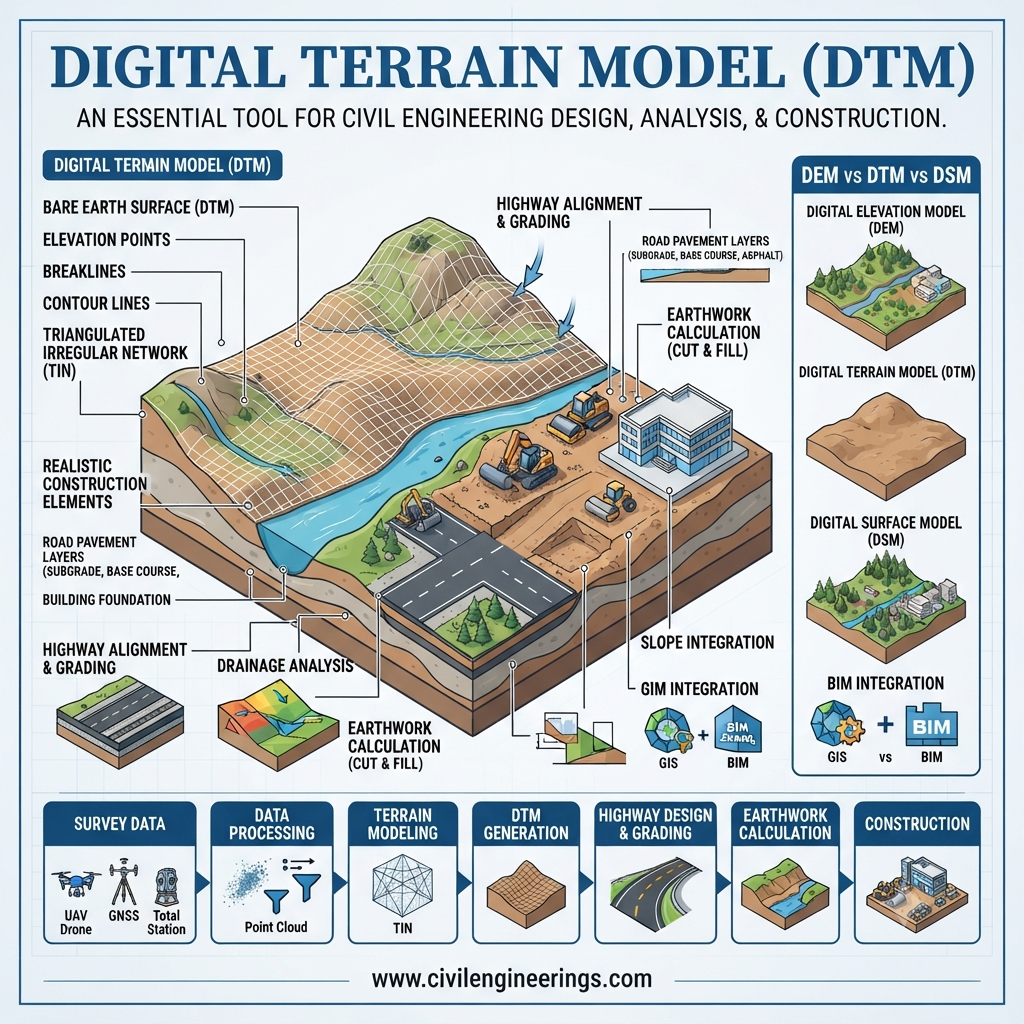

What Is a Digital Terrain Model (DTM)?

A Digital Terrain Model (DTM) is a digital representation of the Earth’s or project site’s bare-earth topography. It describes how ground elevation changes across an area and can preserve significant terrain features such as ridges, valleys, drainage channels, road edges, embankments, and slope breaks.

Unlike a simple collection of survey points, a properly developed DTM organizes elevation information so engineers can analyze the three-dimensional behavior of the terrain.

In practical civil engineering work, a DTM may contain:

• X, Y, and Z coordinates
• Surveyed ground points
• Mass points
• Breaklines
• Contours
• Boundaries
• Ridge lines
• Drainage channels
• Toe and crest lines
• Road edges
• Existing embankments and cut slopes

The terminology is not completely standardized internationally. In some applications, DTM and DEM are treated as similar terms. USGS documentation notes that, in the U.S. context, a DTM can be a vector dataset consisting of 3D mass points and breaklines used to characterize bare-earth terrain. (USGS)

This distinction matters when engineers receive elevation data from different surveyors, GIS databases, government agencies, or design consultants.

Bare-Earth Terrain Representation

The central concept behind a DTM is bare-earth elevation.

Vegetation, buildings, vehicles, towers, and other objects should generally not represent the terrain surface when the objective is road design or earthwork analysis. USGS defines bare-earth elevation data as terrain information without vegetation, buildings, and other structures. (USGS)

For example, imagine a highway passing through a wooded area. A tree canopy may be 15 m above the actual ground. A terrain model used for highway grading should represent the ground beneath the trees, not the tree tops.

Image placement: Bare-earth terrain extracted from elevation or LiDAR data.

Main Components of a Digital Terrain Model

A DTM becomes useful when its components accurately describe the shape of the ground. The most important elements are elevation points, breaklines, boundaries, and surface relationships.

Mass Points and Elevation Points

Mass points are individual points containing horizontal and vertical coordinates:

Point = (X, Y, Z)

Where:

• X = horizontal coordinate
• Y = horizontal coordinate
• Z = ground elevation

Surveyors may collect these points using total stations, GNSS/GPS equipment, LiDAR, photogrammetry, or other surveying technologies.

Points should not simply be collected at random. More points are generally required where terrain changes rapidly, while relatively uniform terrain may require fewer points.

Breaklines

Breaklines are among the most important elements of a high-quality DTM.

A breakline identifies a linear feature where the terrain changes in slope, direction, elevation behavior, or surface continuity. Examples include:

• Top of a retaining wall
• Bottom of a retaining wall
• Road edge
• Kerb line
• Drainage ditch
• Stream bank
• Ridge
• Valley
• Embankment toe
• Embankment crest
• Shoreline

USGS describes breaklines as linear features that define changes in the smoothness or continuity of a surface. Autodesk similarly emphasizes their role in controlling TIN triangulation. (USGS)

A DTM without important breaklines can produce an apparently smooth model that does not actually represent the terrain correctly.

Boundaries

A boundary defines the area within which the terrain model should operate.

For example, a highway survey may cover a 5 km corridor but the DTM may need to exclude unrelated land outside the survey limits. Boundaries help prevent unwanted triangles or interpolated areas from extending beyond the valid survey region.

Contours

Contours connect locations having equal elevation.

For example, a 100 m contour represents locations with an elevation of approximately 100 m relative to the selected vertical reference system.

Contours generated from a reliable DTM can help engineers visually interpret:

• Slopes
• Ridges
• Valleys
• Depressions
• Drainage paths
• Steep terrain
• Flat areas

However, contours should generally be treated as a representation derived from terrain data rather than a substitute for accurate source observations.

How a Digital Terrain Model Is Created

Creating a reliable DTM involves considerably more than importing survey points into software. The quality of the final model depends on field data, coordinate control, classification, editing, breaklines, interpolation, and quality assurance.

Step 1: Establish Survey Control

The first step is establishing reliable horizontal and vertical control.

Survey control provides the reference framework for all subsequent observations. Horizontal coordinates may use a projected coordinate system, while elevations depend on an appropriate vertical datum or project benchmark system.

A mismatch in coordinate systems or vertical datums can shift or vertically distort the resulting model.

Step 2: Collect Terrain Data

Terrain data can come from several sources.

Common methods include:

• Total station surveying
• GNSS/GPS surveying
• Airborne LiDAR
• Terrestrial LiDAR
• Drone photogrammetry
• Aerial photogrammetry
• Existing topographic surveys
• Digitized contours
• Government elevation datasets

LiDAR produces large numbers of three-dimensional observations, commonly called a point cloud. A bare-earth elevation model can then be produced by identifying ground points and removing non-ground features. (USGS)

Step 3: Classify and Clean the Data

Raw survey or remote-sensing data may contain errors and unwanted objects.

The engineer or survey specialist should identify:

• Vegetation points
• Buildings
• Vehicles
• Utility structures
• Outliers
• Duplicate observations
• Erroneous elevations
• Spikes
• Voids
• Incorrect classifications

Data cleaning is particularly important when LiDAR or photogrammetric data are used.

Step 4: Add Breaklines

Important terrain discontinuities should be represented with appropriate breaklines.

For example, if a road embankment has a distinct crest and toe, simply interpolating between random points can produce a rounded surface. Adding the crest and toe as breaklines helps the model preserve the actual geometric behavior of the terrain.

Step 5: Build the Surface

The cleaned points and breaklines can then be used to create a terrain surface.

One common approach is a Triangulated Irregular Network (TIN).

A TIN connects terrain points with triangles. Elevation at a location within a triangle can be calculated through interpolation between the triangle’s vertices.

Autodesk Civil 3D documentation describes TIN surfaces as collections of triangles and notes that breaklines influence how those triangles are formed. (Autodesk Help)

Step 6: Validate the DTM

The final model should be checked before it is used for engineering design.

Quality checks may include:

• Comparing model elevations against independent survey points
• Inspecting contours
• Reviewing triangle geometry
• Checking breakline intersections
• Looking for spikes and pits
• Checking boundaries
• Reviewing drainage paths
• Comparing cross-sections with field conditions
• Checking vertical accuracy against project requirements

A visually attractive surface is not automatically an accurate surface.

DTM, DEM, DSM, and TIN: What Is the Difference?

These terms are often confused because different software packages, agencies, and countries use them differently.

DTM vs DEM

A Digital Elevation Model (DEM) is a broad term for digital elevation information. USGS explains that DEM terminology can vary and that DEMs commonly represent bare-earth terrain using regularly spaced elevation values. (USGS)

A DTM may incorporate irregularly spaced mass points and breaklines to better preserve significant terrain features.

In simplified terms:

DEM → commonly grid-based elevation representation

DTM → terrain representation that may explicitly incorporate terrain features such as breaklines and mass points

The distinction depends on the data specification being used, so engineers should always check the project’s data dictionary and technical requirements.

DTM vs DSM

A Digital Surface Model (DSM) represents the elevation of the upper surface, which may include:

• Buildings
• Trees
• Towers
• Other elevated objects

A DTM focuses on the underlying bare-earth terrain.

This difference becomes particularly important in urban planning, road design, flood modeling, forestry, and telecommunications.

DTM vs TIN

A DTM is a terrain dataset or terrain description. A TIN is a particular surface representation based on connected triangles.

A DTM can be used to generate a TIN surface.

The TIN structure is especially useful where terrain varies significantly and where breaklines need to control the surface geometry. (Autodesk Help)

Image placement: DTM, DEM, DSM, and TIN comparison graphic.

Applications of Digital Terrain Model in Civil Engineering

The value of a DTM becomes clearer when it is connected to actual engineering activities.

Highway and Road Design

Highway projects are among the major users of terrain models.

A DTM can support:

• Horizontal alignment studies
• Vertical alignment design
• Existing ground profiles
• Cross-section generation
• Cut-and-fill calculations
• Road widening
• Interchange planning
• Slope design
• Drainage assessment
• Sight-distance studies
• Construction staging

For example, an engineer can create an existing ground profile along a proposed highway centerline. The profile can then be compared with the proposed vertical alignment to identify areas requiring excavation or embankment.

Earthwork Volume Calculation

DTMs are frequently used to estimate excavation and embankment quantities.

A simplified earthwork relationship is:$$V \approx A \times L$$

where:

• $V$ = approximate volume
• $A$ = average cross-sectional area
• $L$ = distance between sections

For more accurate highway quantity calculations, the average end area method can be expressed as:$$V = \frac{A_1 + A_2}{2}L$$

where $A_1$ and $A_2$ are the areas of two consecutive cross-sections.

For complex terrain, digital surface comparison methods can provide more detailed volume calculations.

Drainage and Stormwater Analysis

Terrain controls how water moves across the landscape.

A DTM can help identify:

• Flow direction
• Drainage basins
• Low points
• Natural channels
• Depressions
• Watershed boundaries
• Potential ponding locations

For road projects, this information can help engineers assess where culverts, side drains, longitudinal drains, channels, and other hydraulic structures may be required.

However, a DTM alone does not replace hydraulic analysis. Engineers must consider rainfall, catchment characteristics, runoff coefficients, channel geometry, design storms, hydraulic capacity, and relevant project standards.

Slope and Terrain Analysis

DTMs can generate slope and aspect information.

A simplified slope gradient can be expressed as:$$S = \frac{\Delta Z}{\Delta L}$$

For percentage slope:$$S(\%) = \frac{\Delta Z}{\Delta L}\times100$$

For example, if ground elevation rises 4 m over a horizontal distance of 100 m:$$S = \frac{4}{100}\times100 = 4\%$$

Slope maps generated from terrain models can assist with preliminary assessments of:

• Cut slopes
• Fill slopes
• Landslide-prone terrain
• Road constructability
• Drainage behavior
• Accessibility

Geotechnical investigation remains essential before finalizing slope stability or foundation decisions.

Image placement: DTM-based highway alignment, contour, and slope analysis.

Digital Terrain Model in Highway Engineering

For highway engineers, the DTM can act as the digital representation of the existing ground against which the proposed roadway is designed.

A typical workflow may be:

Survey → Point Cloud/Survey Points → Ground Classification → Breaklines → DTM/TIN → Existing Ground Profile → Road Design → Cross-Sections → Earthwork Quantities

This workflow creates a connection between field surveying and engineering design.

Existing Ground Profile

The DTM can generate an existing ground line along a proposed road alignment.

The designer can compare:

• Existing ground elevation
• Proposed formation level
• Finished road level
• Cut depth
• Fill height

This is useful when optimizing vertical alignment.

Cut and Fill Assessment

Suppose the existing ground is significantly above the proposed formation. The project will require excavation.

Where the proposed formation is substantially above existing ground, embankment construction may be required.

The DTM allows these differences to be assessed spatially rather than relying only on isolated survey points.

Road Corridor Modeling

A DTM can also serve as the existing-ground reference for corridor modeling software.

Engineers can create:

• Road assemblies
• Superelevation
• Side slopes
• Drainage elements
• Medians
• Shoulders
• Intersections
• Interchanges

The proposed corridor can then be compared with the existing terrain.

Accuracy and Quality Factors Affecting a DTM

DTM accuracy depends on more than the software used to create it.

Survey Accuracy

Errors in field observations directly influence the model.

Poor control points, incorrect instrument setup, multipath GNSS errors, or unsuitable survey procedures can produce inaccurate terrain.

Point Density

A sparse dataset may fail to capture small but important terrain features.

For example, a narrow drainage ditch may disappear from a coarse dataset even though it has major implications for a highway project.

Breakline Quality

Incorrect breaklines can create serious surface errors.

Crossing breaklines, incorrect elevations, duplicate features, and improperly defined terrain discontinuities can generate unrealistic triangles or contours.

Resolution

For raster terrain models, cell size influences the level of terrain detail that can be represented. USGS notes that DEM resolution or cell size determines the spatial size represented by each raster cell and that features smaller than the cell size cannot be explicitly represented. (USGS)

Higher resolution does not automatically mean higher accuracy. The source data must support the selected resolution.

Coordinate and Vertical Datum

Horizontal and vertical reference systems must be consistent.

A project can appear geometrically correct while still containing elevation errors if different vertical references are mixed.

Always document:

• Horizontal coordinate system
• Vertical datum
• Units
• Geoid model, where applicable
• Survey control
• Data collection date
• Accuracy specifications

Common DTM Errors and How to Avoid Them

Several problems occur repeatedly in terrain modeling.

Using a DSM Instead of Bare-Earth Data

A DSM may include trees and buildings. Using it directly for road earthwork can produce incorrect existing-ground elevations.

Solution: confirm whether the dataset represents bare earth or the top surface.

Ignoring Breaklines

A surface created only from mass points may smooth over critical terrain features.

Solution: collect and enforce important breaklines.

Extending the Surface Beyond Valid Data

Software can interpolate areas where no reliable observations exist.

Solution: use appropriate surface boundaries and inspect areas with limited source data.

Accepting Automated Processing Without Inspection

Automated LiDAR classification and surface generation can save time, but errors may remain.

Solution: perform visual and numerical quality control.

Mixing Survey Datums

Combining datasets referenced to different vertical or horizontal systems can produce systematic discrepancies.

Solution: establish the project coordinate framework before importing data.

Over-Smoothing the Terrain

Excessive smoothing can remove genuine drainage channels, ridges, or slope changes.

Solution: retain important terrain characteristics and apply smoothing only when technically justified.

DTM Software and Digital Workflows

DTMs can be developed and analyzed using a range of GIS, surveying, photogrammetry, and civil engineering platforms.

Common software categories include:

• Civil engineering design software
• GIS platforms
• Photogrammetry software
• LiDAR processing systems
• Survey data-processing software
• 3D terrain modeling applications

Autodesk Civil 3D, for example, supports TIN surfaces, contours, boundaries, and breaklines. Its documentation specifically notes that breaklines influence surface triangulation and are important for features such as retaining walls, kerbs, ridges, and streams. (Autodesk Help)

The software is only one part of the workflow. Good survey control, appropriate source data, sound engineering judgment, and quality assurance remain essential.

Image placement: TIN terrain surface showing triangles, contours, and breaklines.

DTM Standards and Engineering References: IRC, AASHTO, and ICE

A DTM should not be treated as an isolated design standard. Its technical requirements normally depend on the project specifications, survey standards, design software requirements, and applicable national or agency guidelines.

IRC

For road projects in India and related engineering practice, Indian Roads Congress (IRC) publications provide guidance covering highway geometric design, surveying, road drainage, pavement engineering, and other aspects of highway development.

The DTM itself supports these design activities by providing the existing terrain information required for engineering analysis.

AASHTO

In the United States and many international projects, AASHTO publications are widely used for transportation design guidance. Terrain information can support geometric design, roadway alignment, drainage, earthwork, and related design processes.

The required DTM accuracy and survey specifications should always follow the specific project contract and governing agency requirements rather than relying on a generic assumption.

ICE

The Institution of Civil Engineers (ICE) provides professional guidance and technical resources relevant to infrastructure, surveying, digital engineering, transportation, and project delivery.

For an actual project, engineers should use the latest applicable edition of the governing standard, contract specification, survey specification, and authority requirements.

Practical Recommendations for Students, Engineers, and Contractors

For Civil Engineering Students

Students should learn the relationship between:

Surveying → Coordinates → Contours → DTM → TIN → Profiles → Cross-Sections → Design

Do not focus only on software commands. Understand why a breakline changes a surface and why an incorrect elevation can affect quantities and drainage.

Practice building simple terrain models from XYZ points and interpreting the resulting contours.

For Highway Engineers

Before using a DTM for final design:

1. Verify the coordinate system.
2. Confirm the vertical datum.
3. Review survey control.
4. Check ground-point classification.
5. Inspect breaklines.
6. Review surface boundaries.
7. Compare selected locations with field observations.
8. Examine profiles and cross-sections.
9. Check drainage-sensitive areas.
10. Document accuracy and source information.

For Contractors

Contractors can use terrain models for:

• Preliminary quantity checks
• Earthwork planning
• Site grading
• Machine-control preparation
• Construction sequencing
• Progress comparison
• Existing-versus-designed surface analysis

However, construction teams should confirm that the model represents the approved survey and design revision before using it for quantity or machine-control purposes.

Image placement: DTM application for construction grading and earthwork.

Future Role of Digital Terrain Models in Infrastructure

DTMs are becoming increasingly important as civil engineering moves toward digital project delivery.

Modern workflows increasingly combine:

• GNSS surveying
• LiDAR
• UAV photogrammetry
• GIS
• BIM
• 3D corridor modeling
• Digital twins
• Automated machine control
• Cloud-based project collaboration

The increasing availability of high-resolution elevation data makes it possible to analyze terrain at greater detail. USGS, for example, produces high-resolution bare-earth elevation products from LiDAR and other elevation sources through its 3D Elevation Program. (USGS)

The challenge is no longer simply obtaining elevation data. Engineers must determine whether the data is accurate, current, appropriately classified, correctly referenced, and suitable for the engineering decision being made.

Frequently Asked Questions About Digital Terrain Model (DTM)

What is a Digital Terrain Model (DTM)?

A Digital Terrain Model (DTM) is a digital representation of bare-earth terrain that describes ground elevations and significant terrain features using elevation data such as mass points and breaklines.

What is the main purpose of a DTM?

The main purpose of a DTM is to represent existing ground conditions digitally so engineers can analyze terrain, generate profiles and contours, calculate earthwork, assess drainage, and support infrastructure design.

What is the difference between DTM and DEM?

The terminology varies by organization. A DEM commonly refers to a digital elevation representation, often as a regular raster grid, while a DTM may explicitly incorporate terrain features such as mass points and breaklines. Always check the project’s technical specification.

What is the difference between DTM and DSM?

A DTM normally represents bare-earth terrain, whereas a DSM can represent the upper surface, including buildings, vegetation, and other objects above the ground.

What is a TIN in a DTM?

A TIN, or Triangulated Irregular Network, represents terrain using connected triangles. A DTM can provide the elevation information and terrain constraints used to construct a TIN surface.

Which surveying methods can create a DTM?

DTM source data can come from total stations, GNSS, LiDAR, drone photogrammetry, aerial photogrammetry, existing surveys, contours, and other elevation datasets.

Why are breaklines important in a DTM?

Breaklines preserve important changes in terrain geometry. They can represent road edges, ridges, drainage channels, retaining walls, stream banks, and other features where ordinary interpolation may produce an unrealistic surface.

Can a DTM be used for road design?

Yes. DTMs are widely useful for highway and road design because they provide existing-ground information for alignment development, profiles, cross-sections, grading, drainage analysis, and earthwork calculations.

Can a DTM be used for earthwork quantity calculations?

Yes. A DTM can support cut-and-fill calculations by comparing existing terrain with a proposed design surface. The accuracy of the result depends on the quality, density, coverage, and vertical accuracy of the underlying data.

Is a high-resolution DTM always better?

Not necessarily. High resolution is useful only when the source data supports the required detail and accuracy. A very dense but inaccurate dataset can still produce an unreliable terrain model.

Conclusion

A Digital Terrain Model (DTM) provides a practical digital foundation for understanding existing ground conditions before infrastructure is designed or constructed. By combining accurate elevation points with important terrain features such as breaklines, boundaries, ridges, valleys, and drainage channels, engineers can develop a much more useful representation of the real terrain.

For highway projects, the DTM can support existing-ground profiles, horizontal and vertical alignment studies, cross-sections, grading, drainage analysis, and cut-and-fill calculations. In broader civil engineering applications, it can assist with site development, watershed analysis, slope assessment, construction planning, and 3D infrastructure modeling.

The quality of the final result depends heavily on the quality of the source survey, coordinate control, classification, breaklines, interpolation method, and verification process. Engineers should therefore avoid treating a terrain model as simply a software-generated surface. It is an engineering dataset that must be checked before important decisions are based on it.

When developed and validated correctly, a Digital Terrain Model (DTM) connects surveying with modern civil engineering design and provides a reliable foundation for better terrain analysis, infrastructure planning, and construction management.
