Designing a pavement is far more than selecting an asphalt or concrete thickness. A pavement must carry repeated traffic loads, withstand environmental effects, maintain acceptable riding quality, and perform reliably throughout its design life. This is why AASHTO Pavement Design remains an important reference for highway engineers, consultants, government agencies, contractors, and civil engineering students.
The AASHTO approach connects traffic loading, pavement serviceability, subgrade strength, material properties, drainage, and reliability into a structured pavement thickness design process. The widely used 1993 AASHTO Guide is based largely on empirical relationships developed from the AASHO Road Test, while newer AASHTOWare Pavement ME Design follows a mechanistic-empirical approach using traffic, climate, and material-response information. (AASHTOWare)

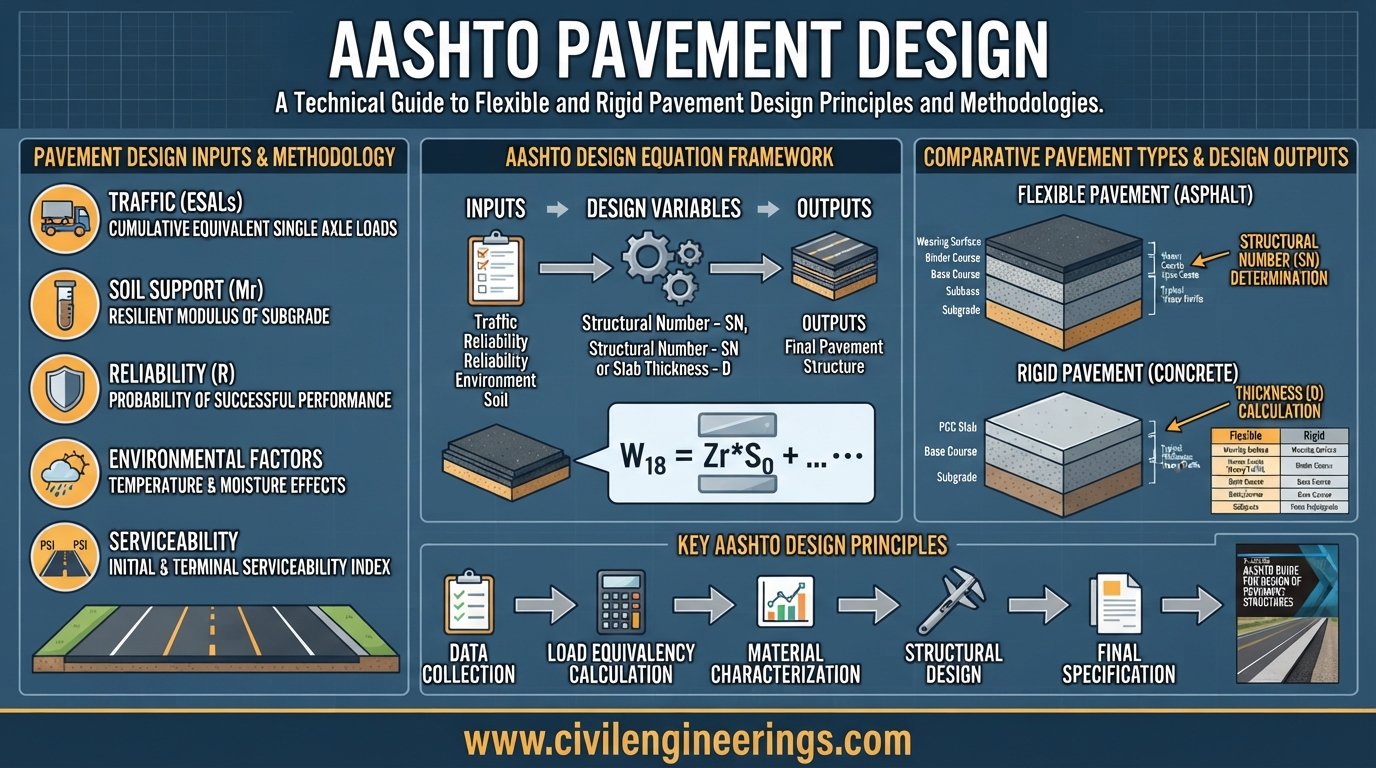

This guide explains the principles behind AASHTO Pavement Design, the major input parameters, structural number, ESAL calculations, flexible and rigid pavement procedures, practical design considerations, common mistakes, and recommendations for engineers and contractors.
What Is AASHTO Pavement Design?
AASHTO Pavement Design is a pavement structural design methodology developed by the American Association of State Highway and Transportation Officials. It provides procedures for determining suitable pavement structures for expected traffic, environmental conditions, material properties, subgrade support, reliability, and desired serviceability.
The 1993 AASHTO Guide for Design of Pavement Structures became one of the most widely used pavement design references for both new construction and rehabilitation. Its empirical foundation comes from observations and performance data obtained during the AASHO Road Test conducted from 1958 to 1960. (AASHTOWare)
The method can be applied to:
- Flexible asphalt pavements
- Rigid concrete pavements
- New pavement construction
- Pavement rehabilitation
- Overlay design
- Different traffic levels and functional road classifications
The fundamental objective is straightforward:
Provide a pavement structure capable of carrying the expected traffic while maintaining an acceptable level of serviceability throughout the selected design period.
AASHTO design therefore combines structural capacity with pavement performance rather than simply specifying a fixed thickness.
Evolution of the AASHTO Pavement Design Method
The history of the method is important because engineers sometimes use the term “AASHTO design” to describe several different generations of pavement design procedures.
AASHO Road Test
The AASHO Road Test provided the empirical foundation for the early pavement design equations. Researchers subjected pavement sections to controlled axle loads and monitored changes in pavement performance.
The resulting relationships linked:
- Axle loading
- Pavement thickness
- Serviceability
- Pavement performance
- Soil support
These relationships eventually evolved into the AASHTO pavement design procedures.
AASHTO 1986 and 1993 Methods
The later AASHTO guides incorporated additional engineering parameters, including resilient modulus, reliability, drainage coefficients, and improved material characterization.
The 1993 method remains particularly important because many highway agencies and engineering organizations continue to reference or adapt it. FHWA documentation identifies the 1993 procedure as an empirical method based on AASHO Road Test performance data. (Federal Highway Administration)
Mechanistic-Empirical Pavement Design
Modern pavement engineering increasingly uses mechanistic-empirical analysis.
AASHTOWare Pavement ME Design builds on the mechanistic-empirical pavement design guide and considers pavement responses such as stresses, strains, and deflections together with traffic, climate, and material characteristics. (AASHTOWare)
Therefore, engineers should distinguish between:
- AASHTO 1993 empirical design
- Mechanistic-empirical pavement design
- Agency-specific pavement design procedures
The applicable design standard should always be confirmed before beginning a project.
Major Inputs in AASHTO Pavement Design
A pavement design is only as reliable as its input data. A technically correct equation cannot compensate for poor traffic forecasts, unrealistic material properties, or inadequate subgrade investigation.
Design Traffic
Traffic is commonly expressed as 18-kip equivalent single axle loads (ESALs) in the traditional AASHTO 1993 procedure.
The designer generally considers:
- Initial traffic
- Annual traffic growth
- Truck percentage
- Axle configurations
- Directional distribution
- Lane distribution
- Design period
- Load equivalency factors
The resulting cumulative design traffic is represented by W₁₈.
Modern mechanistic-empirical methods can use axle-load spectra rather than relying solely on ESALs. AASHTOWare notes that Pavement ME Design incorporates axle-load spectra and climate information in its performance predictions. (AASHTOWare)
Reliability
Reliability represents the probability that the pavement will perform satisfactorily over the design period.
Higher reliability generally means a more conservative structural design.
The 1993 AASHTO method uses a reliability level R and corresponding standard normal deviate Zᵣ. FHWA documentation notes that reliability accounts for uncertainties in traffic, environment, materials, and other design factors. (Federal Highway Administration)
Typical reliability values depend on the road classification and agency requirements. For example, FHWA’s summary of AASHTO recommendations gives higher reliability ranges for freeways than for local roads. (Federal Highway Administration)
Serviceability
Serviceability describes how well the pavement serves road users.
The AASHTO framework uses the Present Serviceability Index (PSI), with approximately:
- 5 = very good condition
- 0 = extremely poor condition
The allowable serviceability loss is:
ΔPSI = Pᵢ − Pₜ
Where:
- Pᵢ = initial serviceability
- Pₜ = terminal serviceability
- ΔPSI = allowable loss of serviceability
The acceptable terminal serviceability depends on the road function and agency requirements.
Subgrade Resilient Modulus
The resilient modulus (Mᵣ) represents the stress-dependent elastic response of pavement foundation materials under repeated loading.
It is an important parameter in AASHTO flexible pavement design.
Weak subgrade conditions generally require greater structural protection. Improving the subgrade through stabilization, improved drainage, or replacement can therefore influence the required pavement thickness.
FHWA identifies resilient modulus of the subgrade as a principal geotechnical input for the 1993 AASHTO flexible pavement procedure. (Federal Highway Administration)
Material Layer Coefficients
Each pavement layer contributes differently to structural capacity.
The traditional AASHTO notation includes:
- a₁ = surface layer coefficient
- a₂ = base layer coefficient
- a₃ = subbase layer coefficient
The coefficients represent the relative structural contribution of the materials.
Drainage Coefficients
Water can dramatically reduce pavement performance. AASHTO therefore incorporates drainage effects into flexible pavement structural calculations through m₂ and m₃.
FHWA documentation describes drainage coefficients as modifiers for the structural contributions of untreated base and subbase layers. (Federal Highway Administration)
Drainage quality is classified from excellent to very poor, with the assessment also considering the percentage of time pavement materials remain close to saturation. (Federal Highway Administration)
AASHTO Flexible Pavement Design
Flexible pavement design generally involves asphalt concrete over one or more unbound or stabilized layers.
A typical structure is:
Asphalt Surface → Base Course → Subbase → Subgrade
The central concept in the 1993 AASHTO procedure is the Structural Number (SN).
Structural Number
The structural number represents the overall structural capacity required from the pavement layers.
For a typical three-layer flexible pavement:
SN = a₁D₁ + a₂D₂m₂ + a₃D₃m₃
Where:
- SN = structural number
- a₁, a₂, a₃ = structural layer coefficients
- D₁, D₂, D₃ = layer thicknesses
- m₂, m₃ = drainage coefficients
This relationship is documented in FHWA’s summary of the AASHTO procedure. (Federal Highway Administration)
The equation demonstrates an important engineering principle: two pavements with the same total thickness can have different structural capacities because their materials and drainage conditions differ.
Flexible Pavement Design Equation
The commonly used 1993 AASHTO flexible pavement equation is:
log₁₀(W₁₈) = ZᵣS₀ + 9.36 log₁₀(SN + 1) − 0.20 + [log₁₀(ΔPSI / (4.2 − 1.5))] / [0.40 + 1094/(SN + 1)⁵·¹⁹] + 2.32 log₁₀(Mᵣ) − 8.07
Where:
- W₁₈ = predicted 18-kip ESAL applications
- Zᵣ = standard normal deviate associated with reliability
- S₀ = overall standard deviation
- SN = structural number
- ΔPSI = allowable serviceability loss
- Mᵣ = subgrade resilient modulus
The equation can be solved for the required structural number when the other design parameters are known. (JICA Report)
Step-by-Step Flexible Pavement Design Procedure
A practical AASHTO 1993 flexible pavement design workflow can be organized as follows.
Establish the Design Period
Determine the required analysis or design period.
For example, a project might use 15, 20, or 30 years depending on the road classification and agency policy.
The selected period must be consistent with traffic forecasting and maintenance assumptions.
Determine Design Traffic
Calculate cumulative ESALs over the design period.
A simplified traffic-growth relationship can be expressed as:
F = [(1 + g)ⁿ − 1] / g
Where:
- F = cumulative growth factor
- g = annual growth rate
- n = number of years
Traffic counts and axle-load information are then used to determine cumulative design ESALs.
Select Reliability and Standard Deviation
Select the reliability level based on roadway classification and agency requirements.
The associated Zᵣ value is then obtained from the standard normal distribution.
For example, FHWA’s AASHTO summary gives Zᵣ = −1.645 for 95% reliability. (Federal Highway Administration)
Determine Serviceability Loss
Select initial and terminal serviceability values and calculate:
ΔPSI = Pᵢ − Pₜ
A higher allowable serviceability loss generally permits a thinner structural section, all else being equal.
Establish Subgrade Mᵣ
Use laboratory or approved field-based procedures to establish an appropriate design resilient modulus.
Seasonal conditions can matter considerably. The 1993 AASHTO procedure includes provisions for determining a seasonally averaged resilient modulus. (Federal Highway Administration)
Calculate Required SN
Insert the design parameters into the flexible pavement equation and solve for the required structural number.
This is normally an iterative calculation.
Select Layer Thicknesses
Once the required SN is known, select practical combinations of asphalt, base, and subbase thicknesses.
For example, consider a hypothetical requirement of:
SNrequired = 4.50
Suppose the proposed layers have:
- a₁ = 0.44
- D₁ = 5 in
- a₂ = 0.14
- m₂ = 1.0
- D₂ = 10 in
Their structural contribution would be:
SN = (0.44 × 5) + (0.14 × 10 × 1.0)
SN = 2.20 + 1.40 = 3.60
Therefore, the proposed structure does not yet provide the required 4.50.
The designer must modify the layer thicknesses, material properties, drainage condition, or overall pavement structure.
This example is illustrative rather than a project-ready design.
Layered Analysis and Thickness Selection
A common mistake is to calculate a total SN and then divide it arbitrarily between layers.
AASHTO layered analysis requires the designer to consider the protection required at different levels of the pavement structure.
For example:
D₁ ≥ SN₁ / a₁
For subsequent layers, the remaining structural requirement is distributed after accounting for the structural contribution already provided by the upper layers.
FHWA’s example procedure illustrates this approach by determining the required SN and then calculating individual layer thicknesses from layer coefficients and drainage factors. (Federal Highway Administration)
The final section must also satisfy:
- Minimum layer thickness
- Maximum practical layer thickness
- Material availability
- Construction requirements
- Compaction requirements
- Drainage requirements
- Frost or expansive-soil considerations
- Cost and lifecycle considerations
A mathematically adequate pavement is not necessarily a constructible pavement.
AASHTO Rigid Pavement Design
Rigid pavement design differs fundamentally from flexible pavement design because the Portland cement concrete slab provides significant flexural strength and distributes wheel loads over a wider area.
A typical rigid pavement consists of:
PCC Slab → Base/Subbase → Subgrade
Important AASHTO rigid pavement inputs include:
- Design traffic
- Reliability
- Serviceability
- Concrete modulus of rupture
- Elastic modulus of concrete
- Modulus of subgrade reaction
- Load transfer coefficient J
- Drainage coefficient Cᵈ
- Slab thickness
- Joint characteristics
- Loss of support
FHWA identifies concrete strength and elastic modulus, load transfer coefficient, drainage coefficient, and foundation properties among the important rigid pavement design parameters. (Federal Highway Administration)
Concrete Slab Thickness
In rigid pavement design, slab thickness is a primary structural variable.
The designer must consider:
- Wheel-load stresses
- Temperature effects
- Curling and warping
- Joint load transfer
- Foundation support
- Drainage
- Concrete strength
- Shoulder condition
Unlike flexible pavement SN calculations, rigid pavement performance depends strongly on slab behavior and load transfer mechanisms.
Load Transfer Coefficient
The J coefficient represents the effectiveness of load transfer across pavement joints.
Dowel bars, tied shoulders, joint condition, and pavement configuration can influence the appropriate value.
FHWA’s AASHTO summary provides different recommended J ranges depending on pavement type, shoulder condition, and load-transfer provisions. (Federal Highway Administration)
Modulus of Subgrade Reaction
Rigid pavement design traditionally uses the k-value, or modulus of subgrade reaction, to represent foundation support.
The effective support condition may involve the combined influence of:
- Subgrade
- Granular subbase
- Stabilized layers
- Bedrock
- Loss of support
- Seasonal conditions
Therefore, the k-value should not simply be assumed without considering the actual foundation system.
Importance of Drainage in AASHTO Pavement Design
Water is one of the most underestimated pavement-deterioration factors.
Poor drainage can cause:
- Reduced subgrade strength
- Pumping
- Rutting
- Erosion
- Moisture damage
- Freeze-thaw deterioration
- Loss of support
- Faster cracking
AASHTO 1993 accounts for drainage in flexible pavement through mᵢ coefficients and in rigid pavement through Cᵈ. (Federal Highway Administration)
FHWA’s summary classifies drainage according to how quickly water can be removed. “Excellent” drainage corresponds to approximately two hours, while “very poor” drainage represents conditions where water does not drain effectively. (Federal Highway Administration)
Consequently, pavement drainage should be addressed during geometric design, earthworks, pavement design, and construction—not added as an afterthought.
AASHTO Pavement Design Example
Consider a hypothetical flexible pavement project with:
- Design traffic = 10 million ESALs
- Reliability = 90%
- S₀ = 0.45
- Initial serviceability = 4.2
- Terminal serviceability = 2.5
- Mᵣ = 7,500 psi
The first step is:
ΔPSI = 4.2 − 2.5 = 1.7
The designer then uses the AASHTO flexible pavement equation to determine the required structural number.
After obtaining the required SN, an appropriate combination of asphalt, base, and subbase layers is selected.
Suppose a trial pavement contains:
- 6 in asphalt concrete
- 10 in granular base
- 8 in granular subbase
The structural contribution can then be evaluated using:
SN = a₁D₁ + a₂D₂m₂ + a₃D₃m₃
The calculated SN must meet or exceed the required value while also satisfying agency minimum thicknesses and construction constraints.
The example illustrates the design process, but actual project design requires verified traffic, geotechnical, environmental, material, and agency-specific inputs.
Common AASHTO Pavement Design Mistakes
Using Poor Traffic Data
Traffic forecasts have a major influence on structural requirements.
Using only current average daily traffic without accurately accounting for heavy vehicles can produce an inadequate pavement.
Assuming an Unrealistic Mᵣ
Subgrade strength can vary significantly with soil type and moisture.
A single optimistic value can distort the entire pavement design.
Ignoring Drainage
A strong pavement structure can deteriorate quickly when water remains trapped within the pavement system.
Treating SN as Total Thickness
Structural number is not simply pavement thickness.
A 200 mm asphalt layer and a 200 mm granular layer do not contribute the same structural capacity.
Ignoring Constructability
A computer-generated thickness does not automatically become a practical construction specification.
Layer thickness must be checked against:
- Paving equipment
- Compaction
- Material grading
- Minimum lift thickness
- Construction tolerances
- Site logistics
Mixing Design Standards
AASHTO, IRC, and other standards have different assumptions, parameters, calibration factors, and design philosophies.
Engineers should not combine equations from different standards without technical justification.
AASHTO vs IRC Pavement Design
AASHTO is widely recognized internationally, but it is not the only pavement design framework.
In countries such as India and neighboring regions, IRC pavement design guidelines are widely used. IRC methods have their own approaches for traffic, pavement materials, subgrade characterization, environmental conditions, and pavement performance.
A project in Pakistan, India, or another country should therefore follow the design standard specified by the responsible highway authority or contract documents.
AASHTO may be useful for:
- International projects
- Comparative studies
- Academic research
- Consultants working with multinational clients
- Projects whose specifications explicitly require AASHTO
The same principle applies to references from organizations such as the Institution of Civil Engineers (ICE): supporting references can improve engineering understanding, but the governing project specification remains the controlling requirement.
Practical Recommendations for Students, Engineers, and Contractors
For Civil Engineering Students
Focus on understanding the relationship between:
Traffic → ESAL → Reliability → Serviceability → Mᵣ → SN → Layer Thickness
Do not memorize equations without understanding the physical meaning of their variables.
Practice complete numerical problems and check units carefully.
For Highway Engineers
Before finalizing a pavement structure, verify:
- Traffic assumptions
- Design period
- Reliability
- Serviceability limits
- Subgrade Mᵣ
- Layer coefficients
- Drainage coefficients
- Minimum layer thicknesses
- Environmental conditions
- Constructability
A sensitivity analysis is also valuable. Test how the design changes when traffic, Mᵣ, drainage, or material properties vary.
For Contractors
Contractors should pay particular attention to the assumptions behind the design.
Construction quality can undermine an otherwise sound design through:
- Poor compaction
- Excess moisture
- Inadequate drainage
- Improper asphalt temperature
- Segregation
- Weak subgrade preparation
- Incorrect layer thickness
- Poor joint construction
The pavement that gets built must resemble the pavement that was designed.
Modern AASHTO Pavement ME Design
The engineering profession has moved beyond purely empirical pavement design.
AASHTOWare Pavement ME Design represents the newer mechanistic-empirical approach. It evaluates pavement responses and predicts distress and smoothness using traffic, climate, and material information. (AASHTOWare)
This is an important distinction.
The traditional 1993 approach primarily relies on empirical performance relationships, whereas mechanistic-empirical design attempts to connect:
Traffic + Climate + Materials → Pavement Response → Distress → Performance
Modern analysis can therefore provide more detailed predictions for distresses such as:
- Asphalt fatigue cracking
- Thermal cracking
- Rutting
- PCC cracking
- Faulting
- Roughness
AASHTOWare describes Pavement ME Design as the next generation of pavement design software built around the mechanistic-empirical pavement design guide. (AASHTOWare)
References and Engineering Standards
For professional pavement work, engineers should consult the latest applicable editions and project-specific specifications rather than relying solely on secondary summaries.
Important reference families include:
- AASHTO Guide for Design of Pavement Structures, 1993
- AASHTO Mechanistic-Empirical Pavement Design Guide
- AASHTOWare Pavement ME Design
- FHWA Geotechnical Aspects of Pavements Reference Manual
- IRC pavement design guidelines, where applicable
- ICE technical guidance and pavement engineering references, where applicable
- Relevant national highway authority specifications
FHWA’s pavement reference material provides detailed explanations of AASHTO 1993 inputs, reliability, resilient modulus, drainage, layer coefficients, and pavement design procedures. (Federal Highway Administration)
Frequently Asked Questions About AASHTO Pavement Design
What is AASHTO Pavement Design?
AASHTO Pavement Design is a pavement structural design methodology used to determine suitable pavement layer configurations based on traffic, serviceability, reliability, material properties, subgrade support, drainage, and environmental considerations.
What is the Structural Number in AASHTO design?
The Structural Number, or SN, represents the required structural capacity of a flexible pavement. It is calculated from layer coefficients, layer thicknesses, and drainage coefficients.
What is the AASHTO flexible pavement equation?
The 1993 AASHTO flexible pavement equation relates design ESALs to structural number, reliability, serviceability loss, standard deviation, and subgrade resilient modulus.
What is W₁₈ in AASHTO pavement design?
W₁₈ represents the cumulative number of 18-kip equivalent single axle load applications expected during the design period.
What is resilient modulus Mᵣ?
Resilient modulus is a measure of the recoverable response of soil or pavement material under repeated loading. It is an important foundation parameter in AASHTO flexible pavement design.
Why is drainage important in AASHTO design?
Drainage affects pavement performance because excessive moisture can weaken unbound materials, reduce subgrade support, cause pumping and erosion, and accelerate pavement deterioration.
Does AASHTO design apply to concrete pavements?
Yes. The AASHTO framework includes procedures for rigid Portland cement concrete pavements as well as flexible asphalt pavements.
Is AASHTO 1993 still used?
Yes. The 1993 AASHTO Guide remains an important reference and is still used or adapted by many agencies. However, modern mechanistic-empirical methods such as AASHTOWare Pavement ME Design provide more advanced performance-based analysis. (AASHTOWare)
Is AASHTO better than IRC pavement design?
Neither should automatically be considered “better.” The appropriate method depends on the governing highway authority, project requirements, local calibration, available data, and environmental conditions.
Can AASHTO pavement design be performed manually?
Yes. The traditional 1993 procedure can be performed using equations, charts, spreadsheets, or dedicated pavement-design software. However, complex projects should undergo independent engineering review and appropriate sensitivity checks.
Conclusion
AASHTO Pavement Design provides a systematic framework for transforming traffic, foundation, material, drainage, reliability, and serviceability information into a practical pavement structure. Its most important lesson is that pavement thickness should never be selected in isolation. Structural performance depends on the interaction between traffic loading, material properties, subgrade behavior, moisture, climate, construction quality, and maintenance.
For flexible pavements, the Structural Number (SN) provides the central link between pavement layers and required structural capacity. For rigid pavements, concrete strength, slab thickness, foundation support, joint load transfer, drainage, and environmental effects become particularly important.
Although the 1993 AASHTO method remains valuable, engineers should also understand the transition toward mechanistic-empirical design and tools such as AASHTOWare Pavement ME Design. (AASHTOWare)
Ultimately, successful pavement engineering comes from combining the design equation with sound traffic forecasting, realistic geotechnical investigation, proper drainage, suitable materials, constructability checks, and quality control. Used correctly, AASHTO methods remain powerful tools for developing durable, economical, and performance-oriented highway pavement structures.
