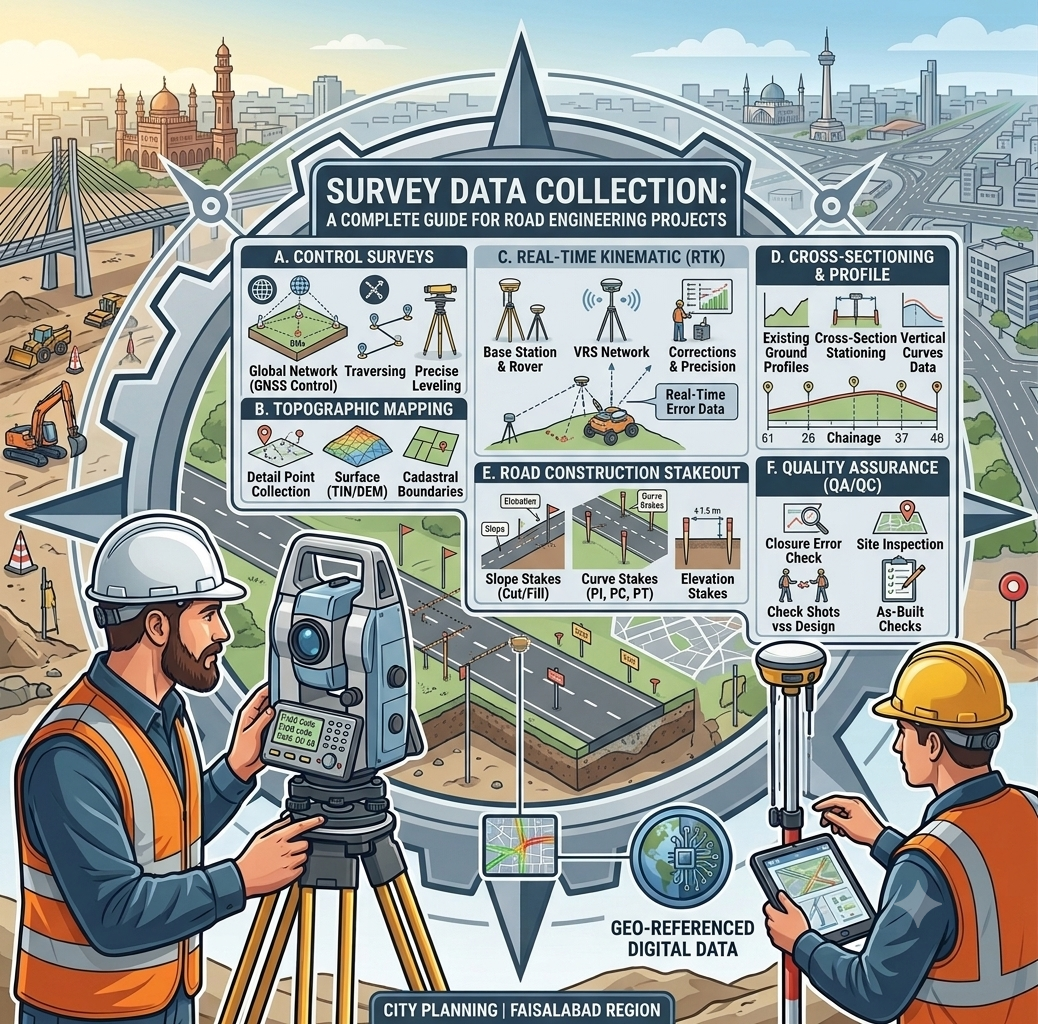

Road engineering begins with accurate information, not heavy machinery. Every successful highway, expressway, bridge approach, or rural road relies on precise Survey Data Collection before engineers prepare drawings or start construction. High-quality survey data helps engineers understand the terrain, identify obstacles, estimate quantities, and design safe, economical transportation infrastructure.

Survey Data Collection forms the foundation of every road project. Engineers use modern surveying techniques to measure distances, elevations, coordinates, natural features, utilities, and existing structures. Reliable data reduces design errors, minimizes construction delays, and improves project quality.

Whether you are a civil engineer, contractor, surveyor, or engineering student, understanding the complete survey process will help you appreciate how road projects move from an idea to a detailed engineering design.

---

Table of Contents

What Is Survey Data Collection?

Why Survey Data Collection Matters in Road Engineering

Objectives of Survey Data Collection

Types of Survey Data Collection

Topographic Survey

Control Survey

Route Survey

Traffic Survey

Geotechnical Survey

Utility Survey

Hydrographic Survey

Survey Data Collection Process

1: Project Plan

2: Reconnaissance Survey

3: Establishing Survey Control

4: Topographic Data Collection

5: Route Survey

6: Utility Mapping

7: Geotechnical Investigation

8: Traffic Data Collection

9: Quality Control

10: Data Processing

Best Practices

FAQs

Conclusion

---

What Is Survey Data Collection?

Survey Data Collection is the systematic process of measuring, recording, and analyzing physical information about a project site. Engineers gather this information before preparing highway alignments, pavement designs, drainage systems, and construction drawings.

The collected data describes existing ground conditions and helps engineers make informed technical decisions.

Typical survey data includes:

• Ground elevations
• Coordinates
• Distances
• Existing roads
• Buildings
• Utility lines
• Rivers and streams
• Trees and vegetation
• Property boundaries
• Soil investigation locations

Without accurate survey data, engineers cannot produce reliable highway designs.

---

Why Survey Data Collection Matters in Road Engineering

Every road project depends on accurate field information. Survey Data Collection reduces uncertainty and provides the information required for planning, design, construction, and maintenance.

Major Benefits

• Improves design accuracy
• Reduces construction risks
• Supports cost estimation
• Optimizes route selection
• Identifies site constraints
• Prevents conflicts with utilities
• Enhances construction efficiency
• Improves road safety
• Reduces project delays

Good survey data also minimizes redesign work during construction, saving both time and money.

---

Objectives of Survey Data Collection

The primary objective is to collect accurate field information for engineering design and project planning.

Additional objectives include:

• Establish existing site conditions.
• Determine ground elevations.
• Locate natural and artificial features.
• Identify utility corridors.
• Support geometric road design.
• Estimate earthwork quantities.
• Facilitate drainage design.
• Assist environmental assessments.
• Improve construction planning.
• Create reliable engineering drawings.

---

Types of Survey Data Collection

Different surveys provide different types of information. Engineers often combine several survey methods to build a complete understanding of the project area.

1. Topographic Survey

A topographic survey records natural and man made features on the ground.

It includes:

• Contours
• Elevations
• Buildings
• Trees
• Roads
• Rivers
• Drainage channels
• Utility poles

Applications

• Highway alignment
• Earthwork calculations
• Drainage design
• Landscape planning

---

2. Control Survey

Control surveys establish permanent reference points with known coordinates and elevations.

These control points provide the foundation for all subsequent surveys.

Common Control Elements

• Benchmarks
• Traverse stations
• GPS control points
• Reference monuments

Accurate control ensures consistency throughout the project lifecycle.

---

3. Route Survey

Route surveys collect information along the proposed road alignment.

Engineers measure:

• Horizontal alignment
• Vertical profile
• Cross sections
• Existing roads
• Intersections
• Water crossings

Route surveys directly support highway geometric design.

---

4. Traffic Survey

Traffic surveys provide information about current and future transportation demand.

Typical data includes:

• Traffic volume
• Vehicle classification
• Peak-hour traffic
• Travel speed
• Origin–destination patterns
• Axle loads

Traffic engineers use this information to determine lane requirements and pavement design.

---

5. Geotechnical Survey

Geotechnical investigations evaluate subsurface conditions.

Engineers examine:

• Soil classification
• Bearing capacity
• Moisture content
• Groundwater level
• Rock formations

These findings guide pavement thickness, embankment design, and foundation selection.

---

6. Utility Survey

Utility surveys identify underground and overhead infrastructure.

Examples include:

• Water pipelines
• Gas pipelines
• Sewer systems
• Electrical cables
• Fiber optic lines
• Communication ducts

Accurate utility mapping prevents costly damage during construction.

---

7. Hydrographic Survey

Hydrographic surveys collect information about rivers, lakes, canals, and other water bodies.

Engineers measure:

• Water depth
• Riverbed profile
• Flow direction
• Flood levels
• Channel width

This information supports bridge, culvert, and drainage design.

---

Survey Data Collection Process

Survey Data Collection follows a logical sequence to ensure accuracy and efficiency.

---

Step 1: Project Planning

Every survey begins with careful planning.

The survey team reviews project objectives, available drawings, satellite imagery, and client requirements before visiting the site.

Activities

• Define survey limits.
• Review project scope.
• Prepare equipment.
• Assign responsibilities.
• Develop safety plans.
• Obtain necessary permissions.

Proper planning improves productivity and reduces field errors.

---

Step 2: Reconnaissance Survey

A reconnaissance survey provides a general understanding of site conditions.

Surveyors inspect the project corridor and identify important physical features before detailed measurements begin.

Engineers Observe

• Terrain conditions
• Existing roads
• Bridges
• Rivers
• Utilities
• Buildings
• Vegetation
• Access routes

This preliminary inspection helps engineers determine the most efficient survey method.

---

Step 3: Establishing Survey Control

Control points create a stable reference framework for all measurements.

Surveyors establish permanent benchmarks using GNSS receivers, total stations, or precise leveling equipment.

Engineering Importance

Survey control:

• Maintains positional accuracy.
• Reduces cumulative errors.
• Supports future construction staking.
• Improves data consistency.
• Simplifies quality verification.

Without proper control, survey accuracy declines significantly.

---

Step 4: Topographic Data Collection

After establishing survey control, engineers collect detailed topographic information.

Modern survey teams commonly use:

• Total Stations
• GNSS/GPS Receivers
• UAV (Drone) Surveys
• LiDAR Scanning
• Digital Levels

Information Collected

• Spot levels
• Contours
• Trees
• Existing structures
• Drainage paths
• Utility poles
• Fence lines
• Property boundaries

Accurate topographic mapping supports roadway alignment and drainage design.

---

Step 5: Route Survey

Route surveys define the proposed highway corridor in detail.

Surveyors collect information along the centerline and at regular cross sections.

Measurements Include

• Chainage
• Offset distances
• Existing ground profile
• Cross-sectional levels
• Road intersections
• Culvert locations
• Stream crossings
• Curvature requirements

The collected information enables engineers to optimize the highway alignment while minimizing construction costs and environmental impacts.

---

Engineering Principles Behind Survey Data Collection

Professional survey teams follow key engineering principles to ensure reliable results.

Accuracy

Measurements must satisfy project tolerance requirements.

Precision

Repeated observations should produce consistent values.

Reliability

Collected data must accurately represent actual field conditions.

Traceability

Every measurement should reference established control points and documented procedures.

Quality Assurance

Field observations require regular verification to identify and correct errors before design work begins.

---

Practical Example

A transportation department plans a new four-lane highway connecting two growing cities. Before preparing the detailed design, surveyors establish GPS control points, conduct a topographic survey, map underground utilities, and collect traffic data. They also perform route and geotechnical surveys to identify suitable alignments and stable foundation conditions.

Using this comprehensive dataset, engineers optimize the highway alignment, estimate earthwork quantities, design drainage structures, and avoid conflicts with existing utilities. The result is a safer, more economical project with fewer construction delays.

---

Survey Data Collection Workflow Diagram

Project Planning
        │
        ▼
Reconnaissance Survey
        │
        ▼
Survey Control Establishment
        │
        ▼
Topographic Survey
        │
        ▼
Route Survey
        │
        ▼
Utility & Geotechnical Surveys
        │
        ▼
Traffic Survey
        │
        ▼
Quality Control
        │
        ▼
Data Processing & Design

---

Step 6: Utility Mapping

After completing the route survey, engineers identify and map all existing underground and overhead utilities within the project corridor. Accurate utility mapping prevents service interruptions, construction delays, and unexpected costs.

Utilities Commonly Surveyed

• Water supply pipelines
• Sewer networks
• Stormwater drains
• Natural gas pipelines
• Electrical transmission lines
• Underground power cables
• Fiber optic communication cables
• Telecommunication towers

Utility Mapping Methods

Survey teams use several techniques to locate utilities accurately:

• Ground Penetrating Radar (GPR)
• Electromagnetic cable locators
• GPS surveying
• Total Station observations
• Existing utility records
• Trial pits for verification

Engineering Benefits

Proper utility mapping:

• Prevents accidental utility damage.
• Improves construction safety.
• Reduces relocation costs.
• Minimizes project delays.
• Supports accurate design drawings.

---

Step 7: Geotechnical Investigation

Surface measurements alone cannot reveal underground conditions. Engineers therefore conduct geotechnical investigations to understand the engineering behavior of soil and rock.

These investigations provide critical information for pavement design, embankment construction, retaining structures, and bridge foundations.

Field Investigations

• Borehole drilling
• Test pits
• Standard Penetration Test (SPT)
• Cone Penetration Test (CPT)
• Groundwater monitoring

Laboratory Testing

Collected samples undergo laboratory analysis for:

• Soil classification
• Grain size distribution
• Atterberg Limits
• California Bearing Ratio (CBR)
• Proctor Compaction Test
• Shear strength
• Moisture content

Practical Application

If engineers discover weak clay with a low CBR value, they may improve the soil using lime stabilization, replace unsuitable material, or increase pavement thickness to achieve the required structural capacity.

---

Step 8: Traffic Data Collection

Traffic data plays a vital role in highway planning and pavement design. Engineers collect current traffic information and forecast future demand to ensure the roadway performs efficiently throughout its design life.

Information Collected

• Average Daily Traffic (ADT)
• Peak Hour Volume (PHV)
• Vehicle classification
• Heavy truck percentage
• Travel speeds
• Turning movements
• Origin–destination patterns
• Axle load distribution

Common Survey Methods

• Manual traffic counts
• Automatic traffic counters
• Video-based traffic monitoring
• Drone-assisted observations
• Weigh-in-motion systems

Importance

Traffic information helps engineers:

• Select the number of lanes.
• Design intersections.
• Determine pavement thickness.
• Improve road safety.
• Estimate future capacity requirements.

---

Step 9: Quality Control and Data Verification

Survey accuracy directly affects the success of the engineering design. For this reason, survey teams verify all measurements before preparing final drawings.

Quality Control Activities

• Check control point coordinates.
• Repeat critical observations.
• Verify benchmark elevations.
• Compare GPS and Total Station data.
• Review field notes.
• Validate digital terrain models.
• Inspect coordinate systems.

Common Sources of Error

• Instrument miscalibration
• Incorrect prism setup
• Human recording mistakes
• Poor satellite reception
• Weather conditions
• Coordinate transformation errors

Early error detection prevents expensive redesign work later in the project.

---

Step 10: Data Processing and Engineering Deliverables

Field observations become useful only after careful processing and analysis.

Survey engineers import field data into specialized software to prepare engineering drawings and digital models.

Software Commonly Used

• AutoCAD Civil 3D
• Bentley OpenRoads
• Trimble Business Center
• Leica Infinity
• GIS platforms

Final Deliverables

A professional survey package generally includes:

• Topographic maps
• Contour plans
• Longitudinal profiles
• Cross sections
• Utility maps
• Digital Terrain Model (DTM)
• Coordinate lists
• Survey reports

These deliverables support every subsequent phase of the road project, from preliminary design to construction staking.

---

Modern Survey Equipment Used in Road Engineering

Advances in surveying technology have greatly improved efficiency and accuracy.

Global Navigation Satellite System (GNSS)

GNSS receivers provide precise coordinates for large infrastructure projects and establish reliable survey control.

Total Station

A Total Station measures horizontal angles, vertical angles, and distances with high accuracy. Surveyors frequently use it for route surveys and construction layout.

Digital Level

Digital levels determine accurate elevations for profiles, benchmarks, and drainage design.

Unmanned Aerial Vehicles (Drones)

Drones capture high-resolution aerial imagery and generate orthophotos, digital elevation models, and three-dimensional terrain maps.

LiDAR Technology

LiDAR rapidly collects millions of elevation points, making it ideal for large highway corridors, mountainous terrain, and dense vegetation.

Ground Penetrating Radar (GPR)

GPR detects underground utilities and hidden structures without excavation, improving safety and reducing construction risks.

---

Engineering Best Practices for Survey Data Collection

High-quality survey data results from disciplined field procedures and continuous quality management.

Best Practices

• Establish permanent control points before detailed surveys.
• Calibrate instruments regularly.
• Verify measurements through independent checks.
• Use modern GNSS and Total Station equipment.
• Maintain detailed field records.
• Protect benchmarks throughout the project.
• Coordinate survey activities with design teams.
• Perform surveys during suitable weather conditions.
• Back up digital data daily.
• Review all drawings before design approval.

---

Practical Recommendations

Civil Engineers

• Verify survey reports before beginning highway design.
• Confirm coordinate systems and project datums.
• Integrate survey, geotechnical, and traffic data into the design process.
• Request additional field verification where uncertainties exist.

Contractors

• Protect established survey control points during construction.
• Confirm construction layouts before excavation.
• Communicate utility conflicts immediately.
• Maintain accurate as-built survey records.

Engineering Students

• Learn both traditional and modern surveying methods.
• Practice operating Total Stations and GNSS equipment.
• Understand contour interpretation and digital terrain modeling.
• Study real highway survey reports to strengthen practical knowledge.

---

General Discussion on IRC, AASHTO, and ICE Practices

Leading road engineering organizations promote accurate surveying as the foundation of successful infrastructure development.

In general, IRC, AASHTO, and ICE guidance emphasizes:

• Conducting detailed topographic and geotechnical surveys before design.
• Establishing reliable survey control networks.
• Using calibrated surveying instruments.
• Applying standardized coordinate systems.
• Verifying survey accuracy through quality assurance procedures.
• Documenting field observations systematically.
• Integrating survey information with environmental and traffic studies.
• Maintaining complete records for future maintenance and upgrades.

Following these widely accepted engineering principles improves project accuracy, construction quality, and long-term roadway performance.

---

Common Mistakes to Avoid

Many survey-related problems arise from avoidable errors.

Avoid these common mistakes:

• Skipping reconnaissance surveys.
• Using outdated control points.
• Ignoring utility investigations.
• Failing to calibrate instruments.
• Collecting insufficient topographic detail.
• Recording incomplete field notes.
• Neglecting quality checks.
• Processing data without verification.
• Using inconsistent coordinate systems.
• Overlooking seasonal drainage conditions.

---

Frequently Asked Questions (FAQs)

1. What is Survey Data Collection in road engineering?

Survey Data Collection is the process of gathering accurate field information such as elevations, coordinates, terrain features, utilities, and traffic data to support road planning, design, and construction.

2. Why is Survey Data Collection important?

It provides reliable information for engineering decisions, reduces construction risks, improves design accuracy, and minimizes project delays.

3. Which survey comes first in a highway project?

A reconnaissance survey usually comes first, followed by establishing survey control and conducting detailed topographic and route surveys.

4. Which instruments are commonly used for Survey Data Collection?

Engineers commonly use GNSS receivers, Total Stations, Digital Levels, drones, LiDAR systems, and Ground Penetrating Radar.

5. What is the difference between a topographic survey and a route survey?

A topographic survey maps existing natural and man made features across an area, while a route survey focuses on the proposed road alignment and associated profiles.

6. How does Survey Data Collection improve road safety?

Accurate survey data supports better geometric design, safer curves, improved drainage, proper sight distances, and well-planned intersections.

7. Why is quality control essential in surveying?

Quality control verifies measurement accuracy, identifies errors early, and ensures reliable engineering drawings.

8. Can drones replace traditional surveying methods?

Drones significantly improve efficiency for large-area mapping, but engineers often combine drone surveys with GNSS and Total Station observations to achieve the required accuracy.

9. What role does geotechnical surveying play?

It reveals soil and rock conditions, allowing engineers to design stable pavements, embankments, and foundations.

10. Who benefits from understanding Survey Data Collection?

Civil engineers, transportation planners, contractors, surveyors, project managers, and engineering students all benefit from understanding survey principles and practices.

---

Conclusion

Survey Data Collection is the cornerstone of every successful road engineering project. Accurate field information guides planning, supports geometric design, improves pavement performance, and reduces construction risks. From reconnaissance surveys and topographic mapping to utility detection, geotechnical investigations, and traffic studies, each activity contributes essential data for informed engineering decisions. Modern technologies such as GNSS, drones, LiDAR, and digital surveying software have transformed the way professionals collect and process information, delivering greater accuracy and efficiency than ever before. However, advanced equipment alone cannot guarantee reliable results. Skilled survey teams, standardized procedures, continuous quality control, and careful data verification remain equally important. By following recognized engineering practices and maintaining high standards throughout the survey process, engineers and contractors can develop safer, more durable, and cost-effective transportation infrastructure. Mastering Survey Data Collection enables professionals and students to build a strong technical foundation for every stage of road and highway development.
