Introduction
Every successful road project begins with reliable survey information. Survey teams collect thousands of measurements from the field, but raw observations alone cannot support engineering decisions. Engineers must organize, verify, calculate, and transform that information into meaningful outputs before they start the design process. This complete workflow is known as Survey Data Processing.
Accurate Survey Data Processing forms the backbone of highway planning, route selection, geometric design, earthwork estimation, drainage analysis, and construction layout. Even a minor error in processed survey data can affect alignment, increase project costs, or create construction challenges. For this reason, transportation engineers follow systematic procedures to validate and process field measurements before using them for design.
Modern survey data processing combines traditional surveying principles with advanced software such as AutoCAD Civil 3D, Bentley OpenRoads, GIS platforms, and digital terrain modeling tools. These technologies help engineers create accurate maps, digital terrain models (DTMs), contour plans, cross-sections, and engineering drawings for road infrastructure projects.
This guide explains the complete Survey Data Processing workflow, practical applications, engineering principles, and industry best practices for civil engineers, contractors, and engineering students.
Table of Contents
1. What Is Survey Data Processing?
2. Why Survey Data Processing Matters in Road Engineering
3. Types of Survey Data
4. Survey Data Processing Workflow
1: Survey Data Collection
2: Data Verification and Quality Control
3: Data Organization and Classification
4: Coordinate Computation
5: Digital Terrain Model (DTM) Creation
6: Contour Generation
7: CAD and BIM Integration
8: Final Survey Deliverables
Best Practices
FAQs
Conclusion
What Is Survey Data Processing?
Survey Data Processing is the systematic procedure of converting raw field measurements into accurate engineering information that supports planning, design, construction, and maintenance of infrastructure projects.
Surveyors collect measurements using instruments such as total stations, GNSS receivers, digital levels, drones, and LiDAR scanners. Engineers then process these observations to determine coordinates, elevations, contours, terrain models, and other design data.
Instead of working directly with raw measurements, designers rely on processed information because it offers greater accuracy, consistency, and reliability.
Objectives of Survey Data Processing
- Convert field observations into usable engineering data.
- Detect and correct measurement errors.
- Produce accurate coordinates and elevations.
- Develop digital terrain models.
- Generate contour maps.
- Support highway alignment and geometric design.
- Improve construction accuracy.
- Reduce project risks and rework.
Why Survey Data Processing Matters in Road Engineering
Road projects require precise spatial information. Every alignment, curve, drainage structure, embankment, and pavement layer depends on accurate survey data.
Proper survey data processing allows engineers to:
- Design safer highway alignments.
- Estimate earthwork quantities accurately.
- Plan efficient drainage systems.
- Reduce construction errors.
- Improve project scheduling.
- Optimize material usage.
- Control project costs.
Engineering Example
Suppose a survey team records incorrect ground elevations along a proposed highway corridor. If engineers use those values without proper verification, they may underestimate excavation quantities. The contractor could then face unexpected costs, schedule delays, and design revisions during construction.
Accurate processing prevents such issues and improves project confidence.
Types of Survey Data
Different survey activities produce different types of information. Engineers process each dataset according to its intended purpose.
Topographic Survey Data
Topographic surveys record natural and man made features, including:
- Ground elevations
- Rivers
- Buildings
- Utility lines
- Trees
- Existing roads
- Drainage channels
These data support route selection and terrain analysis.
Control Survey Data
Control surveys establish fixed reference points with known coordinates and elevations.
These control points provide the foundation for all future survey activities.
Route Survey Data
Route surveys collect information along the proposed highway alignment.
Typical observations include:
- Chainages
- Centerline coordinates
- Longitudinal profiles
- Cross-sections
- Existing structures
Construction Survey Data
Construction surveys provide accurate layout information for:
- Earthworks
- Bridges
- Culverts
- Pavement layers
- Retaining walls
- Drainage systems
Drone and LiDAR Survey Data
Modern road engineering increasingly uses drones and LiDAR systems to capture millions of survey points in a short period.
These technologies produce:
- Dense point clouds
- Orthophotos
- Digital surface models (DSM)
- Digital terrain models (DTM)
- 3D corridor models

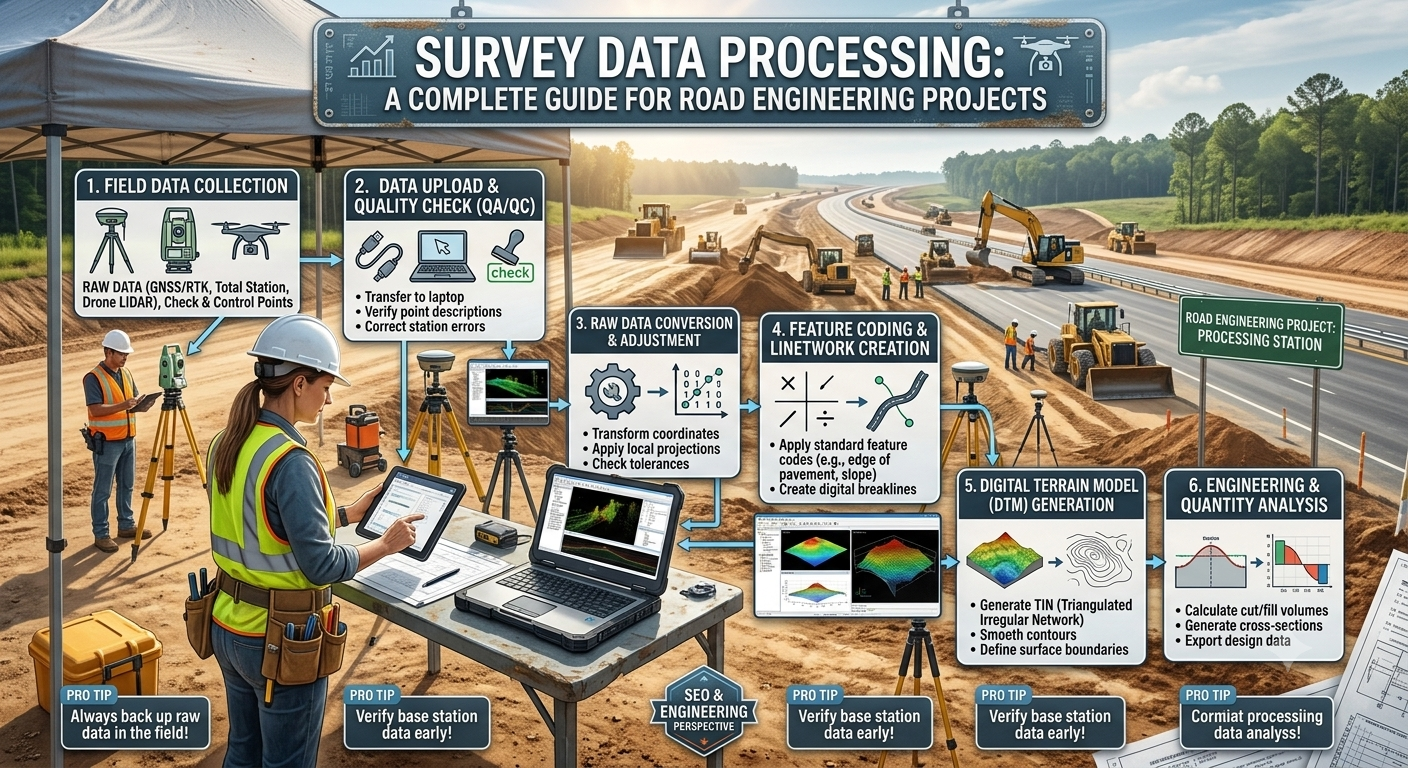

Survey Data Processing Workflow
The processing workflow follows a logical sequence that transforms raw observations into engineering deliverables.
Field Survey
│
▼
Data Download
│
▼
Quality Verification
│
▼
Data Organization
│
▼
Coordinate Computation
│
▼
Terrain Modeling
│
▼
Contours & Profiles
│
▼
Engineering Drawings
Each stage contributes to the accuracy of the final design.
Step 1: Survey Data Collection
Processing begins with reliable field data. High-quality measurements reduce processing time and improve final results.
Common Survey Equipment
- Total Station
- GNSS/GPS Receiver
- Digital Level
- Drone (UAV)
- LiDAR Scanner
- Laser Distance Meter
Data Collected
Survey teams record:
- Horizontal angles
- Vertical angles
- Distances
- Coordinates
- Elevations
- Feature codes
- Point descriptions
Engineering Principle
The accuracy of processed results depends directly on the quality of field observations. Careful instrument setup, calibration, and proper surveying techniques minimize measurement errors.
Best Practices
- Calibrate instruments before fieldwork.
- Verify control points at the start of each survey.
- Record complete field notes.
- Avoid duplicate or missing point numbers.
- Back up digital data immediately after collection.
Step 2: Data Verification and Quality Control
Before performing calculations, engineers verify that the collected data is complete and free from significant errors.
Quality control at this stage prevents incorrect information from entering the design process.
Verification Activities
- Check missing observations.
- Review field notes.
- Confirm point numbering.
- Validate coordinate systems.
- Identify duplicate points.
- Detect outliers.
- Verify benchmark elevations.
Error Detection
Engineers compare measurements against:
- Known control points
- Previous surveys
- Closure calculations
- Redundant observations
If discrepancies exceed acceptable limits, survey teams revisit the site to collect additional data.
Practical Example
A highway control traverse should close within the specified tolerance. If the closing error exceeds the allowable limit, engineers investigate the observations and apply appropriate adjustments before proceeding.
Step 3: Data Organization and Classification
After verification, engineers organize survey information into logical groups that simplify processing and design.
Well-structured data improves productivity and reduces mistakes during modeling.
Typical Classification
Ground Points
Represent natural terrain elevations.
Breaklines
Define abrupt changes in slope, such as:
- Road edges
- Ditches
- Embankments
- Drainage channels
Utility Features
Include:
- Water pipelines
- Electrical poles
- Communication cables
- Sewer lines
Structures
Examples include:
- Buildings
- Bridges
- Culverts
- Retaining walls
Vegetation
Includes:
- Trees
- Shrubs
- Forest boundaries
Example of Feature Classification
Survey Points
│
├── Control Points
├── Ground Points
├── Breaklines
├── Utilities
├── Drainage
├── Structures
└── Vegetation
This classification ensures that each feature receives the appropriate treatment during terrain modeling and design.
Engineering Principles Behind Survey Data Processing
Several fundamental engineering principles guide accurate survey data processing:
- Maintain consistent coordinate reference systems.
- Preserve measurement precision throughout calculations.
- Apply appropriate adjustment methods when necessary.
- Validate processed results against control points.
- Document every correction and calculation.
- Maintain traceability for future verification.
These principles enhance reliability and support informed engineering decisions.
Best Practices
To achieve accurate and dependable survey data processing results:
- Use calibrated surveying instruments.
- Establish reliable horizontal and vertical control networks.
- Perform routine quality checks throughout the project.
- Store raw data separately from processed files.
- Maintain standardized feature coding.
- Use consistent naming conventions.
- Back up project files regularly.
- Review processed outputs before sharing with the design team.
Key Takeaways (Part 1)
Survey Data Processing transforms raw field observations into accurate engineering information for highway planning, design, and construction. The first stages—data collection, verification, and organization—create the foundation for reliable coordinate computation, terrain modeling, and digital mapping. High-quality processing minimizes errors, improves design accuracy, and supports efficient project delivery. Engineers who follow structured workflows and quality control procedures can produce dependable survey outputs that lead to safer, more economical, and better-performing road infrastructure.
Survey Data Processing (Continued)
Step 4: Coordinate Computation
After engineers verify and classify the survey data, they calculate precise coordinates for every survey point. This stage converts field observations into accurate positions that support mapping and engineering design.
Coordinate computation uses mathematical formulas and adjustment techniques to determine the exact horizontal and vertical location of each point.
Common Coordinate Systems
- Universal Transverse Mercator (UTM)
- State Plane Coordinate System
- National Grid Systems
- Local Project Coordinate Systems
Activities Performed
- Traverse adjustment
- Coordinate calculation
- Elevation computation
- Bearing and distance verification
- Closure error analysis
- Coordinate transformation
Engineering Principle
Every calculated coordinate should maintain consistency with the established control network. Engineers verify accuracy before using the results for highway alignment or structural design.
Example
A road centerline survey includes hundreds of observation points. After coordinate computation, engineers create an accurate alignment that guides geometric design and construction staking.
Step 5: Digital Terrain Model (DTM) Creation
The next stage transforms processed survey points into a Digital Terrain Model (DTM). A DTM represents the natural ground surface in three dimensions.
Transportation engineers rely on DTMs for route selection, earthwork calculations, drainage analysis, and corridor design.
Components of a DTM
- Ground points
- Breaklines
- Spot elevations
- Ridge lines
- Valley lines
- Surface triangles
Applications
- Highway alignment
- Cut and fill calculations
- Drainage design
- Slope analysis
- Bridge approaches
- Embankment design
Terrain Modeling Workflow
Processed Survey Points
│
▼
Feature Classification
│
▼
Breakline Definition
│
▼
Triangulated Surface (TIN)
│
▼
Digital Terrain Model
A well-developed terrain model allows designers to visualize existing ground conditions before construction begins.
Step 6: Contour Generation and Mapping
Contours provide a graphical representation of ground elevations. They help engineers understand terrain characteristics and identify suitable highway alignments.
Modern surveying software automatically generates contour lines from Digital Terrain Models.
Types of Contours
- Index contours
- Intermediate contours
- Supplementary contours
Uses of Contour Maps
- Route planning
- Slope determination
- Earthwork estimation
- Watershed analysis
- Drainage planning
- Site grading
Practical Example
When engineers evaluate two possible highway routes through hilly terrain, contour maps reveal the alignment requiring the least excavation and embankment, reducing construction costs.
Step 7: CAD and BIM Integration
Processed survey information becomes more valuable when engineers integrate it into Computer-Aided Design (CAD) and Building Information Modeling (BIM) platforms.
This integration allows designers to create intelligent infrastructure models rather than simple drawings.
Common Software
- AutoCAD Civil 3D
- Bentley OpenRoads
- MicroStation
- ArcGIS
- QGIS
- Trimble Business Center
Benefits
- Faster highway design
- Accurate corridor modeling
- Automatic profile generation
- Efficient quantity estimation
- Improved design coordination
- Reduced design conflicts
Engineering Workflow
Processed Survey Data
│
▼
CAD / BIM Software
│
▼
Alignment Design
│
▼
Profiles & Cross Sections
│
▼
Construction Drawings
This digital workflow improves collaboration among surveyors, designers, contractors, and project managers.
Step 8: Final Survey Deliverables
The last stage of Survey Data Processing involves preparing documents and digital files for the design and construction teams.
These deliverables become the official reference throughout the project lifecycle.
Typical Deliverables
- Topographic maps
- Digital Terrain Models (DTMs)
- Contour maps
- Coordinate lists
- Control point reports
- Longitudinal profiles
- Cross-sections
- Survey reports
- CAD drawings
- GIS datasets
Importance
Accurate deliverables reduce design revisions, improve construction accuracy, and provide reliable records for future maintenance and upgrades.
Engineering Applications of Survey Data Processing
Processed survey data supports nearly every phase of a road project.
Highway Planning
Engineers identify suitable corridors and compare route alternatives using terrain data and topographic maps.
Geometric Design
Accurate coordinates help designers develop safe horizontal curves, vertical alignments, and roadway profiles.
Earthwork Estimation
Digital terrain models enable precise calculations of excavation and embankment quantities.
Drainage Design
Processed elevation data helps determine natural water flow and supports the design of culverts, side drains, and stormwater systems.
Construction Layout
Survey teams use processed coordinates to stake road centerlines, bridge locations, retaining walls, and drainage structures.
Common Challenges in Survey Data Processing
Even experienced professionals encounter difficulties during data processing.
Some common challenges include:
- Missing field observations
- Instrument calibration errors
- Incorrect feature coding
- Coordinate system mismatches
- Duplicate survey points
- Poor control network establishment
- Data loss during transfer
- Software compatibility issues
Early identification of these issues helps prevent costly redesigns and construction delays.
Best Practices for Survey Data Processing
Professional survey teams follow proven practices to ensure reliable results.
- Establish a robust control network before fieldwork.
- Calibrate all survey instruments regularly.
- Use standardized feature codes.
- Verify field data before leaving the site.
- Store raw and processed data separately.
- Maintain consistent coordinate systems throughout the project.
- Perform independent quality checks.
- Keep detailed processing records.
- Use current versions of survey software.
- Protect project data with routine backups.
These practices improve data integrity and reduce the likelihood of errors.
Practical Recommendations
Civil Engineers
- Review processed survey reports before beginning design.
- Confirm coordinate systems with all project stakeholders.
- Verify terrain models against field observations.
- Maintain complete documentation for future reference.
Contractors
- Use approved survey data during construction layout.
- Avoid modifying control points without authorization.
- Coordinate closely with survey teams before major construction activities.
- Verify construction staking before excavation.
Engineering Students
- Develop strong skills in surveying mathematics.
- Learn to use industry-standard CAD and GIS software.
- Understand the relationship between field observations and engineering design.
- Practice interpreting contour maps and terrain models.
General Discussion of IRC, AASHTO, and ICE Practices
Leading highway engineering organizations promote systematic survey data management to improve project quality and safety.
General engineering guidance emphasizes:
- Establishing accurate horizontal and vertical control.
- Conducting thorough topographic and geotechnical surveys.
- Maintaining data accuracy throughout processing.
- Following recognized quality assurance procedures.
- Using appropriate coordinate reference systems.
- Producing reliable terrain models for design.
- Documenting calculations and adjustments.
- Supporting long-term asset management through accurate survey records.
These principles contribute to safer, more durable, and cost-effective transportation infrastructure.
Frequently Asked Questions (FAQs)
1. What is Survey Data Processing?
Survey Data Processing converts raw field measurements into accurate engineering information such as coordinates, elevations, contour maps, and digital terrain models.
2. Why is Survey Data Processing important in road engineering?
It ensures accurate highway alignment, reliable earthwork calculations, efficient drainage design, and precise construction layout.
3. Which software is commonly used for Survey Data Processing?
Popular software includes AutoCAD Civil 3D, Bentley OpenRoads, ArcGIS, QGIS, Trimble Business Center, and MicroStation.
4. What is a Digital Terrain Model (DTM)?
A Digital Terrain Model is a three-dimensional representation of the natural ground surface created from processed survey data.
5. How do contour maps help highway engineers?
Contour maps show elevation changes, helping engineers select alignments, estimate earthworks, analyze slopes, and design drainage systems.
6. What causes errors during Survey Data Processing?
Errors may result from poor field measurements, instrument miscalibration, incorrect feature coding, coordinate mismatches, or incomplete data collection.
7. Why are control points important?
Control points provide fixed reference locations that maintain accuracy and consistency throughout surveying, design, and construction.
8. How does Survey Data Processing support construction?
Processed coordinates and engineering drawings guide contractors during road layout, excavation, structure positioning, and quality control.
9. Can drones improve Survey Data Processing?
Yes. Drones quickly capture high-resolution aerial imagery and dense point clouds, improving efficiency and coverage for large highway projects.
10. How can engineers improve survey data quality?
Engineers can improve quality by calibrating equipment, following standardized procedures, verifying observations, maintaining accurate control networks, and performing regular quality checks.
Conclusion
Survey Data Processing plays a fundamental role in the success of every road and highway project. It transforms raw field measurements into reliable engineering information that supports planning, geometric design, earthwork estimation, drainage analysis, and construction layout. By following a structured workflow that includes data verification, coordinate computation, terrain modeling, contour generation, and digital integration, engineers can minimize errors and improve project efficiency. Modern software and advanced surveying technologies have made processing faster and more accurate, but professional judgment and quality control remain essential. Civil engineers, contractors, and students who understand Survey Data Processing can make better technical decisions, reduce construction risks, and deliver infrastructure that meets performance, safety, and sustainability goals. Accurate survey data is not just a project requirement—it is the foundation of successful road engineering.
