Introduction
Road infrastructure projects demand accurate planning, efficient execution, and reliable data collection. Traditional land surveying methods have served the civil engineering industry for decades, but they often require significant manpower, time, and financial resources. With rapid advancements in unmanned aerial technology, drone-based surveying has emerged as a powerful alternative that delivers high-precision data in a fraction of the time. Today, Drone Survey for Roads has become an essential tool for highway engineers, consultants, contractors, and government agencies involved in transportation infrastructure.
Whether designing a new highway, widening an existing road, or monitoring construction progress, drone surveys provide detailed aerial imagery, digital terrain models, and accurate topographic information that support better engineering decisions. Modern drones equipped with high-resolution cameras, GPS, RTK (Real-Time Kinematic), LiDAR, and photogrammetry software have revolutionised how engineers collect and analyse field data.
This article explores every important aspect of Drone Survey for Roads, including its working principles, equipment, survey workflow, engineering applications, accuracy, practical examples, and industry best practices. Whether you are a civil engineering student, highway engineer, contractor, or infrastructure professional, this guide will help you understand why drone technology is shaping the future of road engineering.
What is Drone Survey for Roads?
A Drone Survey for Roads is a modern surveying technique that uses unmanned aerial vehicles (UAVs) to capture high-resolution aerial images and geospatial data for road and highway projects. The collected data is processed using specialised photogrammetry or LiDAR software to generate accurate engineering outputs such as:
- Topographic maps
- Orthomosaic images
- Digital Terrain Models (DTM)
- Digital Surface Models (DSM)
- Contour maps
- 3D terrain models
- Point clouds
- Road corridor models
- Volume calculations
- Elevation profiles
Unlike conventional surveys that rely on total stations and GPS rovers to measure individual points, drones capture thousands—or even millions—of data points during a single flight. This provides engineers with a much more detailed representation of the project site.
Drone surveys are widely used throughout the lifecycle of highway projects, from feasibility studies and route selection to construction monitoring and maintenance inspections.
Why Drone Surveying is Revolutionising Highway Engineering
The demand for faster and more accurate project delivery has increased significantly in recent years. Large infrastructure projects often cover several kilometres of varied terrain, making conventional surveys both time-consuming and labour-intensive.
Drone technology addresses these challenges by offering:
- Rapid data collection over large areas
- High-resolution imagery
- Reduced field time
- Improved worker safety
- Cost-effective surveying
- Better visual documentation
- Easier progress monitoring
- Reliable digital records
Engineers can now assess difficult terrain, steep slopes, river crossings, forests, and inaccessible locations without exposing survey teams to unnecessary risks.

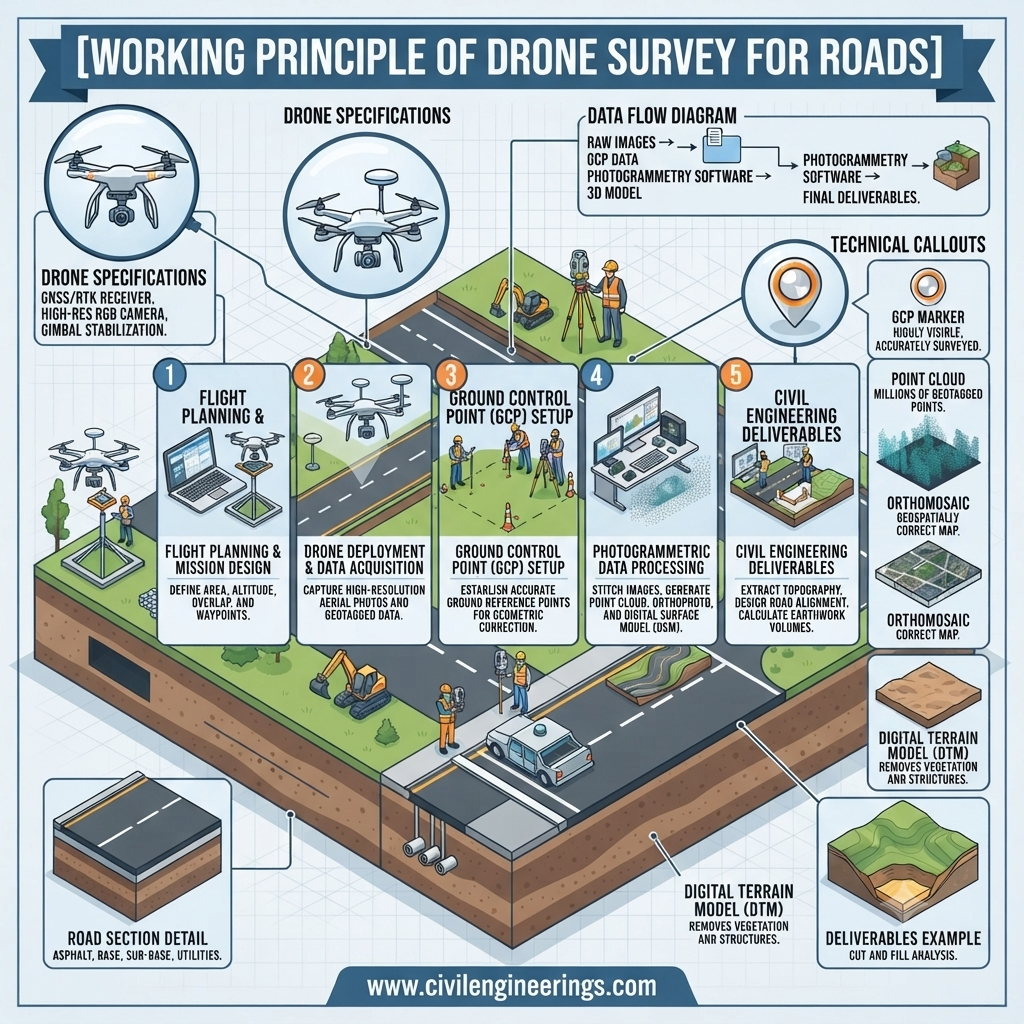

Working Principle of Drone Survey for Roads
Understanding the workflow behind drone surveying helps engineers appreciate the technology’s capabilities and limitations.
A typical drone survey follows these stages:
1. Project Planning
Every successful survey begins with careful planning.
Engineers determine:
- Survey objectives
- Required accuracy
- Survey area boundaries
- Flight altitude
- Image overlap
- Ground control point (GCP) locations
- Weather conditions
- Local aviation regulations
Proper planning ensures that the collected data meets engineering standards.
2. Ground Control Point (GCP) Establishment
Ground Control Points are accurately surveyed locations marked on the ground.
These points improve positional accuracy during image processing.
Many projects use:
- Differential GPS
- RTK GPS
- Static GPS observations
Some modern RTK drones require fewer GCPs while maintaining excellent accuracy.
3. Flight Mission Execution
The drone follows a pre-programmed flight path using mission-planning software.
During flight, the onboard camera captures hundreds or thousands of overlapping photographs.
Typical overlap values include:
- Front overlap: 75–85%
- Side overlap: 60–80%
High overlap enables accurate three-dimensional reconstruction.
4. Data Processing
After data collection, specialised software processes the captured images.
Popular outputs include:
- Orthophotos
- Point clouds
- Digital elevation models
- Contours
- Surface models
- Terrain models
Photogrammetry software identifies common points in overlapping images to reconstruct the terrain with impressive accuracy.
5. Engineering Analysis
Processed survey data is imported into engineering software such as AutoCAD Civil 3D, Bentley OpenRoads, or GIS platforms.
Engineers then perform:
- Alignment design
- Earthwork calculations
- Cross-section generation
- Longitudinal profiles
- Drainage analysis
- Corridor modelling
- Quantity estimation
This digital workflow improves design quality while reducing manual errors.

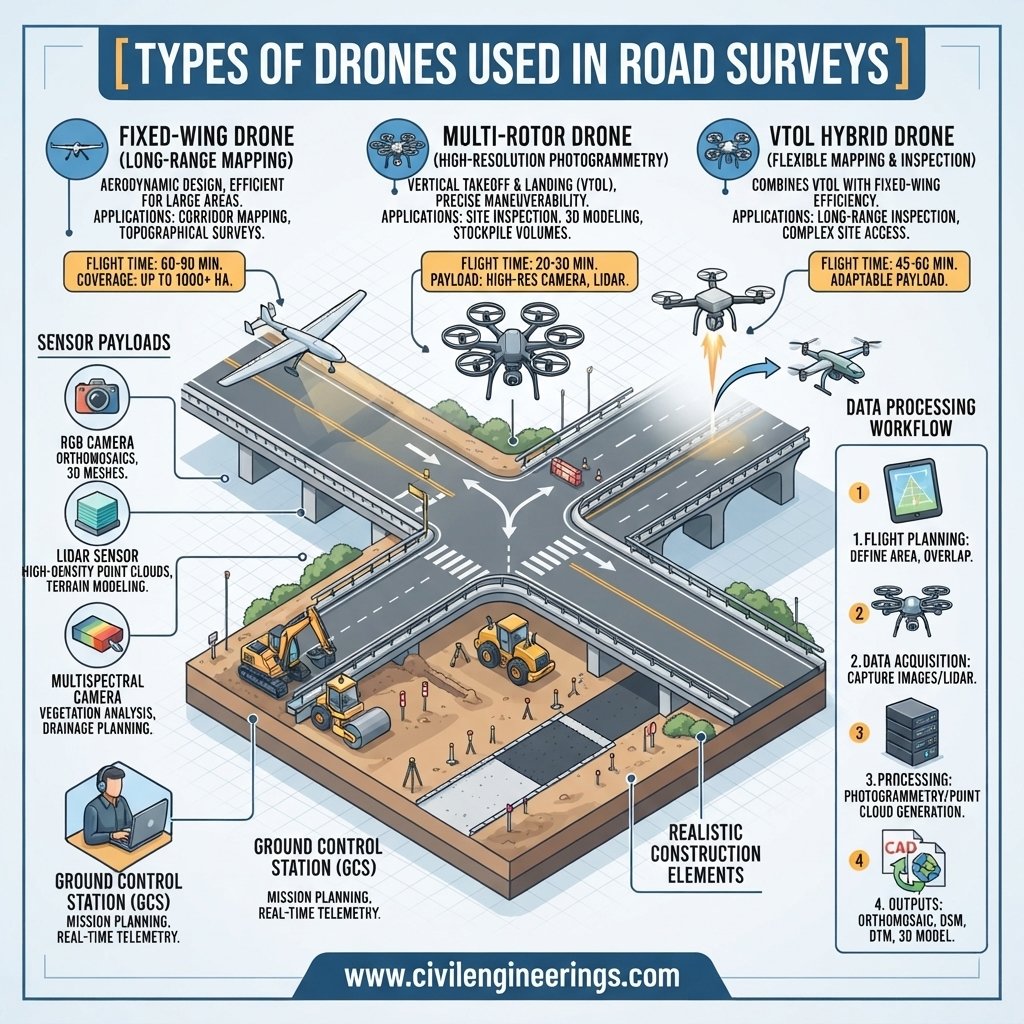

Types of Drones Used in Road Surveys
Different projects require different UAV platforms depending on terrain, project size, and data requirements.
Multi-Rotor Drones
Multi-rotor drones are the most common choice for road surveying.
Advantages
- Easy to operate
- Vertical take-off and landing
- Excellent manoeuvrability
- Suitable for confined project sites
- High-quality image capture
Best Applications
- Urban roads
- Bridge inspections
- Junction improvements
- Construction monitoring
- Pavement inspections
Fixed-Wing Drones
Fixed-wing drones resemble small aeroplanes and are designed for covering extensive areas.
Advantages
- Longer flight duration
- Higher flying speed
- Greater survey coverage
- Better efficiency for highway corridors
Best Applications
- National highways
- Rural roads
- Expressways
- Long transportation corridors
Hybrid VTOL Drones
Hybrid Vertical Take-Off and Landing (VTOL) drones combine the strengths of both multi-rotor and fixed-wing platforms.
Advantages
- Long endurance
- Vertical take-off capability
- Excellent coverage
- Flexible deployment
These drones are increasingly used for large-scale infrastructure projects where access is limited.
Equipment Used in Drone Survey for Roads
A successful drone survey depends on the integration of several advanced technologies.
UAV Platform
The UAV carries the payload and follows the programmed flight path while maintaining stability and positioning accuracy.
High-Resolution Camera
Modern RGB cameras capture detailed aerial imagery suitable for photogrammetric processing. High image quality improves feature recognition, edge definition, and measurement accuracy.
RTK and PPK GPS Systems
Real-Time Kinematic (RTK) and Post-Processed Kinematic (PPK) systems enhance positional accuracy by correcting satellite-based errors. These technologies reduce dependence on numerous Ground Control Points while achieving centimetre-level precision.
LiDAR Sensors
LiDAR (Light Detection and Ranging) uses laser pulses to measure distances and generate dense three-dimensional point clouds. Unlike optical imagery, LiDAR can capture ground elevations beneath vegetation, making it highly effective in forested or uneven terrain.
Ground Control Points (GCPs)
Ground Control Points provide known reference coordinates that strengthen the geometric accuracy of photogrammetric models. They remain essential for projects requiring stringent survey tolerances.
Survey Processing Software
Software platforms transform raw aerial images into engineering-ready outputs. Common functions include:
- Image alignment
- Point cloud generation
- Orthomosaic creation
- Terrain modelling
- Contour extraction
- Volume computation
- Quality assessment
Step-by-Step Drone Survey Workflow for Road Projects
A structured workflow ensures accurate, repeatable, and efficient survey results.
Site Reconnaissance
Engineers visit the project area to assess terrain, identify obstacles, evaluate access routes, and confirm safe take-off and landing zones.
Mission Planning
Flight parameters such as altitude, speed, overlap, and camera settings are configured based on the desired ground sampling distance (GSD) and project objectives.
Establishing Control
Ground Control Points or RTK base stations are set up to provide accurate positional references.
Data Acquisition
The drone flies the predefined route, automatically capturing overlapping images while maintaining consistent flight conditions.
Data Processing
Photogrammetry software converts the images into orthomosaics, digital terrain models, contours, and dense point clouds.
Quality Verification
Survey teams review the processed outputs, check positional accuracy against control points, and verify data completeness before releasing deliverables.
Engineering Integration
Final datasets are imported into CAD, BIM, or GIS software to support design, earthwork estimation, drainage planning, and construction management.
Engineering Applications of Drone Survey for Roads
Drone technology supports nearly every stage of a highway project’s lifecycle.
Route Selection and Feasibility Studies
Early-stage surveys provide planners with accurate terrain information, helping evaluate alternative alignments, environmental constraints, and land use before detailed design begins.
Topographic Surveying
High-resolution elevation data enables engineers to develop reliable terrain models for geometric design, earthwork calculations, and drainage planning.
Earthwork Estimation
Dense point clouds and terrain models allow precise calculation of excavation and embankment volumes, improving budgeting and reducing material waste.
Construction Progress Monitoring
Regular drone flights document project progress, compare actual work against schedules, identify delays, and provide visual evidence for stakeholders.
Pavement Condition Assessment
Aerial imagery helps identify cracks, rutting, edge failures, shoulder erosion, and drainage issues, supporting maintenance planning and asset management.
Bridge and Culvert Inspection
Drones can inspect bridge decks, piers, abutments, retaining walls, and culverts without exposing engineers to hazardous locations or requiring lane closures.
Drainage and Flood Analysis
Digital terrain models support the analysis of catchment areas, water flow paths, and drainage performance, helping engineers design resilient road infrastructure.
Environmental Monitoring
Drone surveys assist in monitoring vegetation clearance, erosion control measures, sediment movement, and compliance with environmental regulations.
Accuracy of Drone Survey for Roads
Accuracy depends on several factors, including drone equipment, flight planning, ground control, weather conditions, and processing techniques. With properly planned missions using RTK or PPK systems, drone surveys commonly achieve horizontal and vertical accuracies within a few centimetres, making them suitable for many highway engineering tasks. Survey quality also improves when engineers maintain adequate image overlap, distribute Ground Control Points effectively, and follow recognised quality assurance procedures.
For projects with stringent geometric requirements, field verification using conventional surveying instruments remains good engineering practice. Drone surveys should complement—not completely replace—traditional control surveys where high-order accuracy is essential.
Practical Example: Highway Widening Project
Imagine a 25-kilometre highway widening project passing through farmland, small settlements, and rolling terrain. Conducting a conventional topographic survey could require several survey crews working for many weeks.
By deploying a drone equipped with RTK technology, engineers can capture detailed aerial imagery of the entire corridor in just a few flights. The processed data produces accurate orthomosaics, digital terrain models, contour maps, and earthwork quantities. Designers use these outputs to refine the horizontal and vertical alignment, estimate cut-and-fill volumes, identify drainage challenges, and monitor construction progress throughout the project.
The result is a faster survey process, improved decision-making, reduced field risks, and a comprehensive digital record that supports every stage of the highway development lifecycle.
Best Practices for Drone Survey in Road Projects
To maximise the value of drone surveys, engineers should follow proven industry practices:
- Define clear survey objectives before mobilisation.
- Select the appropriate drone platform based on project size and terrain.
- Fly only in favourable weather with low wind speeds and consistent lighting.
- Maintain adequate front and side image overlap for reliable photogrammetric reconstruction.
- Use RTK/PPK systems and Ground Control Points where required to achieve the desired accuracy.
- Calibrate sensors and verify camera settings before each mission.
- Perform quality checks on processed datasets before using them for design or construction.
- Maintain compliance with aviation regulations, project safety plans, and client specifications.
- Archive raw imagery and processed deliverables for future reference and project audits.
Advantages of Drone Survey for Roads
Drone technology has transformed road engineering by providing a faster, safer, and more data-rich alternative to many traditional surveying methods. While conventional surveys remain essential for establishing primary control, drones significantly improve productivity throughout the project lifecycle.
1. Faster Data Collection
One of the biggest advantages of a Drone Survey for Roads is the ability to survey large project corridors in a short period. A drone can capture several kilometres of roadway within a single flight, reducing fieldwork from weeks to days in many cases.
This rapid data acquisition helps engineers begin design work sooner and keeps infrastructure projects on schedule.
2. High Survey Accuracy
Modern drones equipped with RTK, PPK, or LiDAR technology deliver centimetre-level accuracy when supported by properly established control points and quality assurance procedures.
Accurate terrain information improves:
- Road alignment design
- Earthwork estimation
- Drainage planning
- Utility mapping
- Quantity calculations
Better survey accuracy reduces design revisions and construction errors.
3. Improved Safety
Road surveying often exposes engineers to busy highways, steep embankments, river crossings, unstable slopes, and remote locations.
Using drones significantly reduces the need for surveyors to work in hazardous environments.
Examples include:
- Highway median surveys
- Bridge inspections
- Mountain roads
- Landslide-prone areas
- Flood-affected regions
Improved safety also lowers project risks and enhances compliance with workplace health and safety standards.
4. Cost Efficiency
Although purchasing professional drone equipment requires investment, the long-term savings are substantial.
Reduced field staff, shorter survey durations, fewer repeat visits, and faster processing all contribute to lower project costs.
For large transportation projects, drone surveys often provide an excellent return on investment.
5. Better Project Visualisation
Traditional survey drawings provide numerical information.
Drone surveys add another dimension by producing:
- High-resolution orthophotos
- Three-dimensional terrain models
- Digital surface models
- Interactive point clouds
These visual products improve communication between engineers, contractors, consultants, and clients.
6. Continuous Construction Monitoring
Road construction rarely follows exactly as planned.
Regular drone flights allow project teams to compare planned progress with actual site conditions.
This helps identify:
- Construction delays
- Material stockpile changes
- Earthwork progress
- Pavement construction status
- Drainage installation
- Safety concerns
Decision-makers receive updated information without waiting for lengthy field reports.
7. Accurate Volume Calculations
Earthwork quantities significantly influence highway construction costs.
Drone-generated terrain models allow engineers to calculate:
- Excavation quantities
- Embankment volumes
- Borrow pit capacity
- Stockpile measurements
More accurate quantity estimation improves budgeting and material management.
Limitations of Drone Survey for Roads
Despite its many advantages, drone surveying has practical limitations that engineers should understand before selecting it for a project.
Weather Dependency
Strong winds, heavy rain, fog, or poor visibility can reduce flight safety and image quality.
Survey planning should always consider seasonal weather patterns.
Battery Limitations
Most multi-rotor drones operate for approximately 25 to 45 minutes per battery.
Long highway corridors often require multiple battery changes and carefully planned flight missions.
Regulatory Restrictions
Many countries regulate UAV operations.
Survey teams must obtain necessary permissions and comply with aviation authority requirements regarding:
- Maximum flight altitude
- No-fly zones
- Airport restrictions
- Visual line-of-sight operations
- Pilot certification
Failure to comply can delay projects and create legal issues.
Dense Vegetation
Photogrammetry struggles to capture the actual ground surface beneath thick vegetation.
LiDAR-equipped drones perform much better in forests because laser pulses can penetrate gaps in the canopy.
Initial Investment
Professional survey-grade drones, RTK systems, LiDAR sensors, software licences, and pilot training involve significant upfront costs.
However, these costs are often offset by long-term productivity gains on medium and large infrastructure projects.
Drone Survey vs Traditional Road Survey
| Feature | Drone Survey | Traditional Survey |
|---|---|---|
| Survey Speed | Very fast | Slower |
| Site Coverage | Large areas | Limited daily coverage |
| Worker Safety | Excellent | Moderate |
| Terrain Accessibility | Excellent | Difficult in remote areas |
| Data Density | Millions of survey points | Selected survey points |
| 3D Models | Easily generated | Requires additional processing |
| Earthwork Calculations | Highly efficient | More time-consuming |
| Construction Monitoring | Excellent | Labour-intensive |
| Initial Equipment Cost | Higher | Moderate |
| Control Survey Accuracy | High with RTK/GCPs | Very high for primary control |
Rather than replacing conventional surveying entirely, drones work best as part of an integrated surveying strategy. Traditional methods establish high-accuracy control, while drones rapidly collect detailed spatial data across the project corridor.
General Discussion of IRC, AASHTO, and ICE Guidance
Although major engineering organisations continue to update their guidance as surveying technology evolves, several common principles remain relevant when using drones for road projects.
IRC (Indian Roads Congress)
IRC publications emphasise the importance of accurate topographic surveys for geometric design, highway planning, drainage studies, and earthwork estimation. Drone-derived datasets can effectively support these objectives when validated through established survey control and quality checks.
AASHTO (American Association of State Highway and Transportation Officials)
AASHTO promotes reliable geospatial information for transportation planning, design, construction, and asset management. Drone surveys complement these practices by providing high-resolution terrain data that supports informed engineering decisions throughout the project lifecycle.
ICE (Institution of Civil Engineers)
ICE encourages the adoption of modern digital engineering technologies that improve project delivery, safety, efficiency, and sustainability. Drone surveying aligns with these goals by enhancing collaboration, reducing field risks, and supporting data-driven infrastructure management.
Engineering Best Practice
Regardless of the standard being followed, engineers should:
- Establish reliable survey control.
- Verify drone accuracy through field checks.
- Maintain documented quality assurance procedures.
- Follow aviation regulations.
- Archive survey data properly.
- Use qualified survey professionals for project validation.
These principles ensure that drone-generated information is suitable for engineering design and construction.
Practical Recommendations for Students
Students interested in transportation engineering should develop both traditional surveying knowledge and modern drone surveying skills.
Recommended areas of study include:
- Surveying fundamentals
- GPS and GNSS technology
- Photogrammetry
- Geographic Information Systems (GIS)
- Remote sensing
- AutoCAD Civil 3D
- Bentley OpenRoads
- Drone mission planning
- Digital terrain modelling
- Highway geometric design
Hands-on practice with UAV software and processing tools will significantly improve employability in the civil engineering sector.
Practical Recommendations for Highway Engineers
Professional engineers should integrate drone surveys into appropriate stages of road projects rather than viewing them as a complete replacement for conventional methods.
Key recommendations include:
- Select the appropriate UAV platform for project size.
- Use RTK or PPK systems for improved positional accuracy.
- Verify deliverables using independent control points.
- Combine drone data with conventional surveys where required.
- Implement standard operating procedures for data management.
- Train staff in UAV operations and photogrammetric processing.
- Review survey outputs before using them for final design decisions.
Practical Recommendations for Contractors
Contractors can gain significant project advantages by incorporating drone technology into daily operations.
Recommended applications include:
- Weekly construction progress reports
- Earthwork monitoring
- Material stockpile measurement
- Quality documentation
- Safety inspections
- Equipment tracking
- Environmental compliance
- Client progress presentations
Routine drone surveys also create a valuable visual record that can assist with contract administration and dispute resolution.
Future of Drone Survey for Roads
Drone technology continues to evolve rapidly.
Several innovations are expected to reshape road engineering over the coming years:
- Artificial Intelligence (AI)-assisted feature extraction
- Automated pavement distress detection
- Machine learning for asset management
- Autonomous flight planning
- Real-time cloud data processing
- Digital twins of highway infrastructure
- Integration with Building Information Modelling (BIM)
- Smart city transportation systems
- Higher-accuracy LiDAR sensors
- Beyond Visual Line of Sight (BVLOS) operations where regulations permit
As these technologies mature, drone surveys will become an even more valuable component of transportation engineering, enabling faster decision-making and more efficient infrastructure management.
Frequently Asked Questions (FAQs)
1. What is a Drone Survey for Roads?
A Drone Survey for Roads is a surveying method that uses unmanned aerial vehicles to capture aerial imagery and geospatial data for planning, designing, constructing, and maintaining road infrastructure.
2. How accurate are drone surveys for road projects?
With RTK, PPK, or LiDAR systems and appropriate survey control, drone surveys can achieve centimetre-level accuracy suitable for many highway engineering applications.
3. Can drone surveys replace traditional land surveying?
Not entirely. Drone surveys complement traditional surveying by collecting detailed spatial data efficiently, while conventional methods remain important for establishing primary control and verifying critical measurements.
4. Which type of drone is best for highway surveys?
Multi-rotor drones are ideal for smaller sites and inspections, whereas fixed-wing and hybrid VTOL drones are better suited to long highway corridors because of their greater flight endurance and coverage.
5. What software is commonly used to process drone survey data?
Engineers commonly use photogrammetry and GIS software to generate orthomosaics, digital terrain models, contours, point clouds, and three-dimensional surfaces that can be imported into design platforms such as AutoCAD Civil 3D and Bentley OpenRoads.
6. Is drone surveying suitable for construction monitoring?
Yes. Regular drone flights provide accurate progress records, support quantity verification, monitor site conditions, and improve communication between contractors, consultants, and clients.
7. What are the main limitations of drone surveys?
Weather conditions, flight time, aviation regulations, dense vegetation for image-based surveys, and the initial investment in equipment and software are among the primary limitations.
8. Why are Ground Control Points important?
Ground Control Points improve the positional accuracy of aerial data by providing precisely surveyed reference locations during photogrammetric processing.
9. Can drones be used for road maintenance inspections?
Yes. Drones are widely used to inspect pavements, shoulders, bridges, culverts, drainage systems, slopes, and roadside assets, helping engineers identify maintenance needs more efficiently.
10. What skills should civil engineering students learn for drone surveying?
Students should build expertise in surveying, GNSS, photogrammetry, GIS, remote sensing, UAV mission planning, terrain modelling, and engineering design software to prepare for careers in modern infrastructure projects.
Conclusion
The adoption of Drone Survey for Roads has fundamentally changed how transportation infrastructure is planned, designed, constructed, and maintained. By combining high-resolution aerial imagery, advanced positioning systems, and powerful data-processing software, drone surveys provide engineers with accurate, comprehensive, and timely information that supports better project decisions. Compared with many traditional methods, drones improve productivity, enhance worker safety, reduce survey time, and deliver rich datasets for terrain modelling, earthwork estimation, construction monitoring, and asset management.
However, successful implementation depends on thoughtful planning, appropriate equipment selection, adherence to aviation regulations, and rigorous quality assurance. Drone technology should be viewed as a complementary tool that works alongside conventional surveying techniques to achieve reliable engineering outcomes. As artificial intelligence, LiDAR, BIM integration, and autonomous flight capabilities continue to advance, Drone Survey for Roads will play an increasingly important role in the future of highway engineering. Civil engineering students, practising engineers, contractors, and consultants who embrace these technologies today will be better equipped to deliver efficient, sustainable, and high-quality road infrastructure projects in the years ahead.
