Concrete pavement is one of the most durable pavement systems used for highways, urban roads, airports, industrial yards, ports, and heavily trafficked facilities. Unlike flexible pavement, which relies strongly on bituminous layers and distributes traffic loads through several courses, concrete pavement carries wheel loads through a relatively stiff cement concrete slab.

A well-designed slab, however, is not simply a matter of selecting a concrete strength and thickness. Concrete Pavement Design requires careful consideration of traffic loading, subgrade support, concrete properties, temperature and moisture effects, joint spacing, load transfer, drainage, construction quality, and long-term maintenance. A small weakness in any of these elements can lead to cracking, faulting, pumping, or premature deterioration.

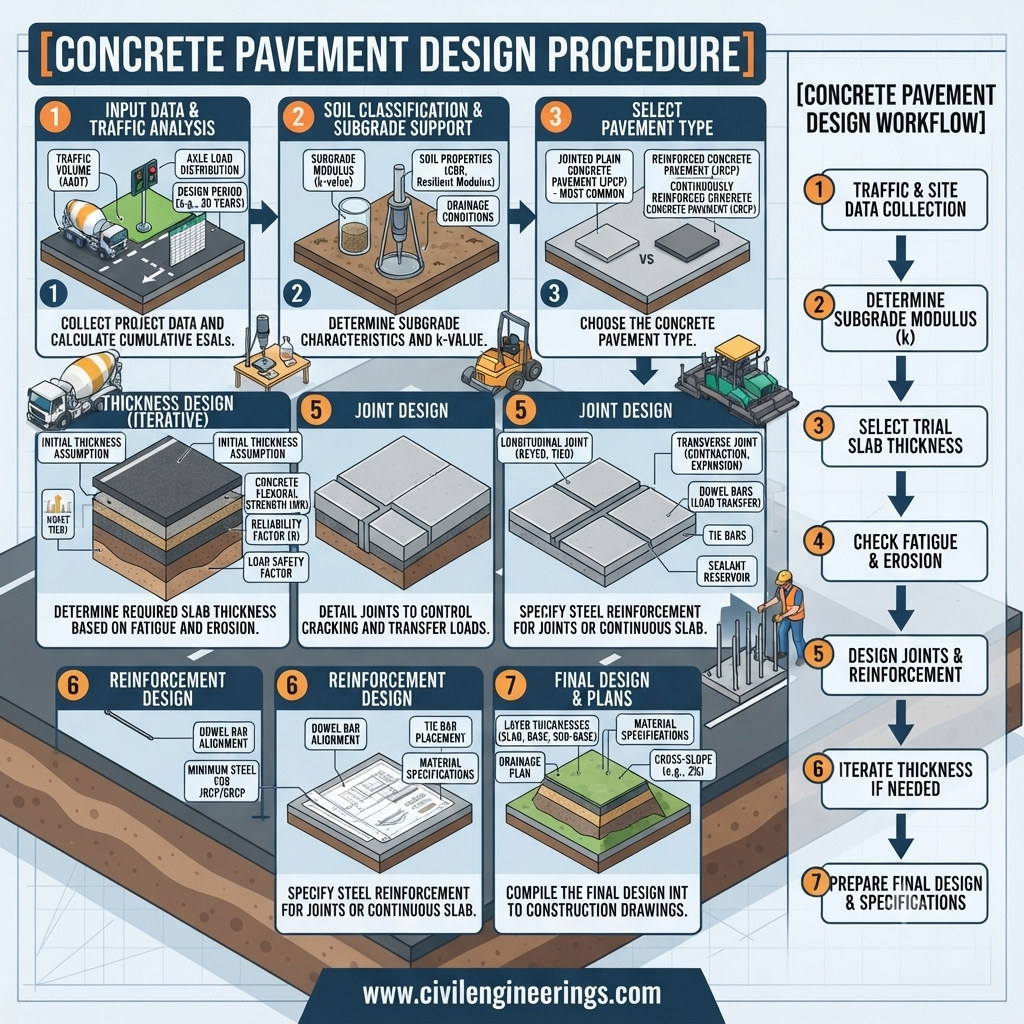

This guide explains the engineering principles behind concrete pavement design and takes the reader from site investigation and traffic evaluation to slab thickness, joint design, reinforcement, drainage, construction, and quality control. It also discusses practical considerations from IRC, AASHTO, and ICE-oriented engineering practice, making it useful for students as well as practicing highway professionals.

What Is Concrete Pavement Design?

Concrete pavement design is the engineering process used to determine the structural and functional characteristics of a rigid pavement so that it can safely withstand expected traffic and environmental stresses throughout its design life.

The principal structural component is the portland cement concrete (PCC) slab. Depending on the pavement system, the slab may rest directly on the prepared subgrade or on a subbase layer.

A typical rigid pavement may contain:

• Concrete surface slab
• Base or subbase
• Prepared subgrade
• Shoulder
• Transverse and longitudinal joints
• Dowels and tie bars where required
• Drainage provisions

The slab’s high flexural strength and stiffness allow it to distribute wheel loads over a comparatively broad area.

Why Concrete Pavement Requires Specialized Design

Concrete behaves differently from asphalt. Its performance depends not only on compressive strength but also on:

• Flexural strength
• Elastic modulus
• Poisson’s ratio
• Fatigue resistance
• Thermal expansion and contraction
• Moisture-related volume changes
• Slab dimensions
• Support conditions
• Load-transfer efficiency

For this reason, rigid pavement design must consider both traffic-induced stresses and environmental stresses.

Components of a Concrete Pavement System

Each pavement layer performs a specific engineering function. A good slab cannot compensate indefinitely for poor foundation preparation.

Concrete Slab

The concrete slab provides the primary structural capacity. Its thickness and material properties control its ability to resist bending, fatigue, thermal stresses, and repeated wheel loading.

Important concrete parameters include:

• Flexural strength
• Compressive strength
• Modulus of elasticity
• Coefficient of thermal expansion
• Drying shrinkage
• Curing characteristics

For pavement design, flexural strength often has greater structural significance than compressive strength because the slab primarily experiences bending.

Base or Subbase

A subbase provides a more uniform and stable platform beneath the slab.

Its functions include:

• Improving support uniformity
• Reducing pumping
• Controlling erosion
• Improving drainage
• Protecting the subgrade
• Providing construction access

Materials can include granular aggregate, cement-treated material, lean concrete, or other stabilized layers depending on project requirements.

Subgrade

The subgrade is the prepared soil foundation beneath the pavement structure.

Its engineering characteristics influence slab response through the effective support condition. Investigation should consider:

• Soil classification
• Strength
• Moisture condition
• Density
• Seasonal variation
• Drainage
• Expansive or weak soils

Poor subgrade treatment is a common cause of nonuniform pavement performance.

Joints, Dowels and Tie Bars

Joints intentionally divide the slab into manageable panels and control where movement or cracking occurs.

Dowel bars transfer wheel loads across transverse joints while permitting horizontal movement.

Tie bars hold adjacent longitudinal slabs together and help prevent lane separation.

Correct placement, alignment, coating, spacing, and anchorage are essential.

Important Inputs for Concrete Pavement Design

Before calculating slab thickness, the designer needs reliable project data. A sophisticated calculation based on poor input information can still produce a poor pavement.

Traffic Loading

Traffic evaluation should include:

• Initial traffic volume
• Commercial vehicle traffic
• Axle-load distribution
• Growth rate
• Lane distribution
• Directional distribution
• Design period

Heavy axle loads are particularly important because pavement damage is strongly influenced by load magnitude.

A simplified traffic projection can be expressed as:$$N = N_0(1+g)^n$$

Where:

• $N$ = projected traffic
• $N_0$ = initial traffic
• $g$ = annual growth rate
• $n$ = number of years

For detailed pavement design, designers generally use axle-load spectra or equivalent loading procedures rather than relying only on total vehicle counts.

Subgrade Support

The support condition beneath the slab affects slab deflection and stress.

Depending on the design methodology, support may be represented using parameters such as:

• CBR
• Modulus of subgrade reaction, $k$
• Resilient modulus
• Composite support characteristics

The parameter should match the selected design method.

Concrete Strength

Concrete pavement design commonly considers flexural strength at the specified design age.

The modulus of rupture can be represented as:$$f_r = \text{specified flexural strength}$$

The actual relationship between compressive and flexural strength depends on the concrete mixture, aggregate type, curing, and testing method. Designers should therefore avoid blindly converting compressive strength into flexural strength using a universal equation.

Environmental Conditions

Temperature and moisture changes cause concrete to expand, contract, warp, and curl.

The design should account for:

• Maximum and minimum pavement temperatures
• Daily temperature gradients
• Seasonal moisture changes
• Relative humidity
• Rainfall
• Freeze-thaw exposure where applicable
• Concrete coefficient of thermal expansion

Environmental loading becomes particularly important when slabs are long, joints are poorly designed, or support conditions are uneven.

Concrete Pavement Thickness Design

Slab thickness is one of the most important outputs of rigid pavement design.

An excessively thin slab may experience fatigue cracking and excessive deflection. An unnecessarily thick slab increases project cost and can create construction and material-management challenges.

The designer therefore seeks an economical thickness that satisfies structural and serviceability requirements.

Stress and Deflection Concept

When a wheel travels over a concrete slab, the slab bends. The resulting stresses depend on:

• Wheel load
• Slab thickness
• Slab dimensions
• Concrete stiffness
• Foundation support
• Load-transfer conditions
• Temperature gradient

For simplified structural reasoning, bending stress can be related conceptually to:$$\sigma = \frac{Mc}{I}$$

Where:

• $\sigma$ = bending stress
• $M$ = bending moment
• $c$ = distance from neutral axis
• $I$ = moment of inertia

Actual pavement analysis is more complex because the slab behaves as a plate supported by the foundation rather than as an isolated beam.

Westergaard-Based Concepts

Classical rigid pavement theory introduced by Westergaard remains important for understanding slab behavior.

The radius of relative stiffness can be expressed conceptually as:$$l = \left[\frac{Eh^3}{12k(1-\mu^2)}\right]^{1/4}$$

Where:

• $l$ = radius of relative stiffness
• $E$ = concrete modulus of elasticity
• $h$ = slab thickness
• $k$ = modulus of subgrade reaction
• $\mu$ = Poisson’s ratio

The equation demonstrates an important design principle: slab thickness has a strong influence on structural response.

Modern design procedures go beyond classical equations and evaluate traffic repetitions, climatic effects, reliability, and multiple distress mechanisms.

Fatigue Design

Repeated wheel loading can cause fatigue damage even when individual wheel-load stresses remain below the concrete’s ultimate strength.

A common conceptual approach is:$$\text{Stress Ratio} = \frac{\sigma}{f_r}$$

Where:

• $\sigma$ = pavement tensile stress
• $f_r$ = concrete flexural strength

The resulting stress ratio is then evaluated against allowable repetitions through an appropriate fatigue relationship.

The actual fatigue equation should come from the design standard or calibrated pavement-design methodology being used.

Concrete Pavement Joint Design

Joint design deserves as much attention as slab thickness. Many pavement problems originate from poorly planned or poorly constructed joints.

Transverse Joints

Transverse contraction joints control cracking caused by concrete shrinkage and temperature reduction.

Their spacing depends on factors such as:

• Slab thickness
• Concrete properties
• Aggregate type
• Climate
• Coefficient of thermal expansion
• Construction practices

The designer should avoid excessively large panels because longer panels can develop greater movement and curling stresses.

Longitudinal Joints

Longitudinal joints separate adjacent lanes or pavement strips.

They commonly use tie bars to maintain lane-to-lane interaction.

The joint must remain sufficiently stable without preventing the natural movement required by the concrete slab.

Expansion Joints

Expansion joints accommodate significant movement and are used where justified by the pavement configuration and adjacent structures.

They should not be installed indiscriminately. Modern concrete pavement practice often limits their use to locations where expansion movement requires specific accommodation.

Dowel Bar Design

Dowel bars transfer load across transverse joints.

The design considers:

• Diameter
• Length
• Spacing
• Embedment
• Concrete strength
• Load-transfer demand
• Joint movement
• Bar alignment

A dowel that is incorrectly aligned can restrain slab movement and contribute to joint distress.

Tie Bar Design

Tie bars primarily provide lateral restraint between adjacent slabs.

They are not intended to function as simple substitutes for dowels.

Their diameter, length, spacing, and anchorage should follow the selected pavement standard and lane configuration.

Reinforcement in Concrete Pavement

Reinforcement does not automatically make a pavement structurally adequate. Its role depends on the pavement type and design objective.

Concrete pavements may be classified broadly as:

• Jointed plain concrete pavement
• Jointed reinforced concrete pavement
• Continuously reinforced concrete pavement
• Prestressed concrete pavement

Jointed Plain Concrete Pavement

Jointed plain concrete pavement uses regularly spaced joints to control slab cracking.

It can be economical when appropriate joint spacing, thickness, load transfer, drainage, and construction control are provided.

Jointed Reinforced Concrete Pavement

Steel reinforcement helps control crack widths and may permit different joint arrangements.

The reinforcement should be designed according to the specific pavement system rather than added simply as a safety measure.

Continuously Reinforced Concrete Pavement

Continuously reinforced concrete pavement uses substantial longitudinal reinforcement and does not rely on closely spaced transverse contraction joints.

Instead, controlled transverse cracking develops within the pavement.

This system can provide excellent long-term performance when designed and constructed correctly, although initial construction requirements can be more demanding.

Drainage and Its Role in Rigid Pavement Performance

Water is one of the most underestimated factors in pavement deterioration.

Water entering pavement joints can contribute to:

• Pumping
• Erosion
• Loss of support
• Faulting
• Subgrade weakening
• Freeze-thaw damage in susceptible climates

A concrete pavement drainage system may incorporate:

• Proper surface crossfall
• Sealed joints
• Permeable or free-draining layers
• Edge drains
• Subsurface drainage
• Adequate outlets

Drainage design should be integrated with pavement design rather than treated as a separate construction detail.

Concrete Mix Design for Pavements

Pavement concrete must provide more than high compressive strength.

A suitable mix should balance:

• Flexural strength
• Durability
• Workability
• Shrinkage
• Setting time
• Abrasion resistance
• Permeability
• Constructability

Water-Cement Ratio

Lower water-cement ratios generally improve strength and durability when the mixture remains workable and properly compacted.

However, reducing water alone does not guarantee good pavement concrete. Aggregate grading, cementitious materials, admixtures, curing, and construction practices all influence performance.

Aggregate Selection

Aggregates make up most of the concrete volume, so their quality has a major effect on pavement behavior.

Important properties include:

• Strength
• Soundness
• Durability
• Shape
• Texture
• Gradation
• Resistance to abrasion
• Thermal characteristics

Aggregate type can also influence the coefficient of thermal expansion and therefore the temperature response of the slab.

Construction Process for Concrete Pavement

Even an excellent design can fail if field execution is poor.

A typical construction sequence includes:

Subgrade Preparation

The subgrade should be:

1. Excavated or filled to the required formation level.
2. Moisture-conditioned.
3. Compacted.
4. Trimmed to the required profile.
5. Tested for uniformity and compliance.

Soft areas should be identified and corrected before placing upper layers.

Subbase Construction

The approved subbase material is placed to the specified thickness and compacted to achieve the required support and surface condition.

Surface irregularities should be corrected because variations beneath the slab can influence support and slab behavior.

Concrete Batching and Transportation

Concrete production should maintain consistent:

• Proportions
• Water content
• Slump or workability
• Temperature
• Mixing time
• Delivery time

Uncontrolled addition of water at the site can seriously alter pavement concrete properties.

Placement and Compaction

Concrete may be placed using fixed-form or slip-form paving equipment.

The paving operation should achieve:

• Correct line and level
• Proper slab thickness
• Uniform consolidation
• Appropriate surface texture
• Correct joint geometry

Finishing and Texturing

Over-finishing can bring excessive mortar to the surface and may negatively affect pavement durability.

Texturing should provide adequate skid resistance without creating unnecessary surface defects.

Curing

Curing protects the concrete during early-age strength development.

Methods may include:

• Curing compounds
• Wet coverings
• Moist curing
• Plastic sheeting where appropriate

The selected method should comply with project specifications and environmental conditions.

Joint Sawing

Timing is critical.

If sawing begins too late, uncontrolled cracking may occur. If it begins too early, the concrete can ravel at the cut.

Field teams should monitor concrete condition and weather rather than rely solely on a fixed clock time.

Concrete Pavement Quality Control

Quality control should begin before concrete reaches the paving machine.

Important tests and inspections can include:

• Slump or workability
• Concrete temperature
• Air content where applicable
• Compressive strength
• Flexural strength
• Aggregate grading
• Cement properties
• Thickness verification
• Surface regularity
• Joint alignment
• Dowel positioning
• Curing inspection

Thickness Verification

Concrete thickness is a critical structural parameter.

If a pavement is consistently thinner than the design requirement, its fatigue and load-carrying capacity can be significantly affected.

Dowel Alignment

Dowel alignment should receive special attention.

Poor alignment can produce joint locking, increased stress, and premature joint deterioration.

Common Concrete Pavement Failures

Understanding failure mechanisms helps engineers improve designs.

Transverse Cracking

Possible causes include:

• Excessive joint spacing
• Late joint sawing
• Drying shrinkage
• Temperature stresses
• Inadequate curing

Corner Breaks

Corner breaks can develop when slab support is inadequate and wheel loading produces high stresses near slab corners.

Poor drainage and weak foundation conditions can make the problem worse.

Faulting

Faulting refers to differential elevation across a joint or crack.

It is commonly associated with:

• Repeated heavy traffic
• Inadequate load transfer
• Pumping
• Erosion
• Poor drainage

Pumping

Pumping occurs when repeated wheel loading forces water and fine material through joints or cracks.

It indicates an interaction between water, traffic, and erodible foundation material.

Joint Spalling

Spalling is localized breaking or deterioration near a joint.

Potential contributors include:

• Poor joint construction
• Incompressible materials entering joints
• Improper dowel alignment
• Weak concrete
• Freeze-thaw action where applicable

Concrete Pavement Design Standards: IRC, AASHTO and ICE

A pavement designer should always identify the governing project standard before beginning detailed calculations.

IRC

Indian Roads Congress publications provide widely used guidance for rigid pavement design and highway construction in South Asian conditions.

Relevant IRC guidance can cover areas such as:

• Cement concrete pavement design
• Materials
• Construction
• Joint details
• Quality control

Designers should use the latest applicable IRC publication and project specifications, rather than relying on outdated equations or tables reproduced online.

AASHTO

Pavement design methodology has historically played an important role in North American pavement engineering.

AASHTO approaches can incorporate:

• Traffic loading
• Reliability
• Serviceability
• Concrete strength
• Foundation support
• Drainage
• Load transfer

Modern mechanistic-empirical approaches extend this concept by explicitly evaluating pavement responses and predicted distress.

ICE and UK Practice

The Institution of Civil Engineers (ICE) contributes extensively to professional civil engineering knowledge, although pavement structural design itself is normally governed by the relevant national standards, highway specifications, and design manuals.

For UK projects, engineers should follow the applicable current Department for Transport, Design Manual for Roads and Bridges, specification, and associated standards.

Best practice: never combine equations, coefficients, reliability factors, or material requirements from different design systems without verifying their compatibility.

Practical Recommendations for Students, Engineers and Contractors

For Civil Engineering Students

Do not memorize slab-thickness tables without understanding the mechanics behind them.

Focus on:

• Load transfer
• Flexural stress
• Fatigue
• Temperature effects
• Joint behavior
• Subgrade support
• Drainage

Practice complete design examples and compare results under different traffic and foundation conditions.

For Highway Engineers and Consultants

Start with reliable field data.

Before finalizing a pavement section, verify:

• Traffic projections
• Axle loading
• Concrete flexural strength
• Foundation support
• Climate
• Drainage
• Joint arrangement
• Construction capabilities

Carry out sensitivity checks for uncertain parameters.

For Site Engineers

Pay particular attention to details that drawings cannot control automatically:

• Concrete consistency
• Slab thickness
• Dowel alignment
• Tie-bar positioning
• Joint sawing
• Surface texture
• Curing
• Construction tolerances

Good site records also help identify the causes of defects when problems emerge later.

For Contractors

Construction planning should begin before concrete placement.

Coordinate:

• Batching capacity
• Haul distance
• Paving speed
• Backup equipment
• Weather conditions
• Joint-sawing crews
• Curing arrangements
• Testing facilities

A breakdown in the paving train can create cold joints and construction irregularities, so contingency planning is essential.

Modern Approaches to Concrete Pavement Design

Concrete pavement engineering is moving toward more performance-based and mechanistic approaches.

Modern projects increasingly use:

• Mechanistic-empirical analysis
• Automated pavement sensors
• 3D machine control
• Digital construction models
• Automated concrete paving
• Improved curing technologies
• Performance-based specifications
• Life-cycle cost analysis
• Recycled and supplementary cementitious materials

Sustainability is also becoming an important design consideration.

A pavement with a longer service life can reduce reconstruction frequency, traffic disruption, material consumption, and whole-life costs.

Concrete Pavement Design Example: Basic Engineering Approach

Consider a proposed highway carrying substantial heavy-vehicle traffic.

The designer would generally proceed through the following sequence:

1. Establish the design life.
2. Estimate future commercial traffic.
3. Develop axle-load information.
4. Investigate the subgrade.
5. Select the appropriate subbase system.
6. Establish concrete flexural strength.
7. Determine environmental inputs.
8. Select the applicable design methodology.
9. Calculate trial slab thickness.
10. Check fatigue performance.
11. Check erosion or pumping-related criteria where required.
12. Design joints and load-transfer systems.
13. Check drainage.
14. Review constructability.
15. Perform sensitivity and reliability checks.
16. Finalize the pavement section.

For example, increasing the slab thickness can reduce bending stress, while improving foundation support can also modify pavement response. However, the most economical solution is not necessarily the thickest slab.

The final design should satisfy structural, functional, construction, and life-cycle requirements simultaneously.

Advantages and Disadvantages of Concrete Pavement

Advantages

Concrete pavement can offer:

• Long service life
• High load-carrying capacity
• Good resistance to rutting
• Reduced dependence on petroleum-based binders
• Stable performance under heavy traffic
• Potentially lower maintenance frequency
• Good surface durability when properly designed

Disadvantages

Potential limitations include:

• Higher initial construction cost in some situations
• Longer construction and curing requirements
• More complex joint detailing
• Sensitivity to construction quality
• Difficult repairs when major slab failures occur
• Potential noise considerations depending on surface texture
• Thermal and shrinkage cracking if poorly controlled

The best pavement type depends on traffic, climate, materials, construction resources, maintenance strategy, and life-cycle cost.

FAQs About Concrete Pavement Design

What is the main purpose of concrete pavement design?

The primary purpose is to determine a pavement structure that can safely carry expected traffic and environmental loads while maintaining acceptable performance throughout the selected design life.

Which strength is most important in concrete pavement design?

Flexural strength is particularly important because concrete pavement slabs primarily resist wheel loading through bending. Compressive strength remains important for quality and durability but should not be treated as the only structural parameter.

How is concrete pavement thickness determined?

Thickness is determined from factors such as traffic loading, concrete strength, foundation support, environmental conditions, load-transfer efficiency, reliability, and the selected pavement design methodology.

What is the difference between a dowel bar and a tie bar?

A dowel transfers load across a transverse joint while allowing horizontal movement. A tie bar primarily holds adjacent longitudinal pavement slabs together.

Why are joints necessary in concrete pavement?

Joints control and accommodate movements caused by shrinkage, temperature changes, construction requirements, and slab geometry. Proper joint design reduces uncontrolled cracking and improves long-term performance.

Does a stronger concrete mix always produce better pavement?

No. Excessively focusing on strength can overlook shrinkage, thermal behavior, durability, workability, curing, and constructability. Pavement concrete should be designed for balanced performance.

What causes concrete pavement pumping?

Pumping generally results from the combination of water, repeated heavy loading, and erodible material beneath or near joints and cracks. Good drainage, appropriate subbase materials, and effective load transfer help reduce the risk.

Which standards are used for concrete pavement design?

The applicable standard depends on the project jurisdiction. IRC guidance is widely used in India and parts of the region, AASHTO methods are common in North America and internationally, while UK projects follow applicable UK highway standards and specifications. Always verify the current governing documents.

Is reinforcement always required in concrete pavement?

No. Reinforcement depends on the selected pavement type and structural design. Jointed plain concrete pavement, jointed reinforced pavement, and continuously reinforced concrete pavement use different approaches.

How can concrete pavement service life be improved?

The strongest combination is sound design, uniform foundation support, appropriate slab thickness, effective drainage, properly detailed joints, durable concrete, accurate construction, adequate curing, and timely maintenance.

Conclusion

A successful Concrete Pavement Design is much more than choosing a concrete thickness from a standard table. It is an integrated engineering exercise involving traffic loading, slab mechanics, foundation support, concrete properties, climate, drainage, joint behavior, construction methods, and long-term performance.

The most reliable designs begin with accurate project information and use a recognized design methodology consistently. Engineers should evaluate fatigue, environmental stresses, load transfer, erosion risk, and constructability rather than focusing on a single parameter.

For students, understanding the mechanics behind rigid pavement behavior provides a strong foundation for highway engineering. For consultants and government engineers, careful investigation and sensitivity analysis improve design reliability. Contractors and site engineers play an equally important role because joint alignment, concrete quality, curing, slab thickness, and construction tolerances directly affect field performance.

Ultimately, durable concrete pavement comes from the interaction of good design and good construction. A technically sound pavement section, combined with appropriate materials, drainage, quality control, and maintenance planning, can deliver decades of dependable service.
